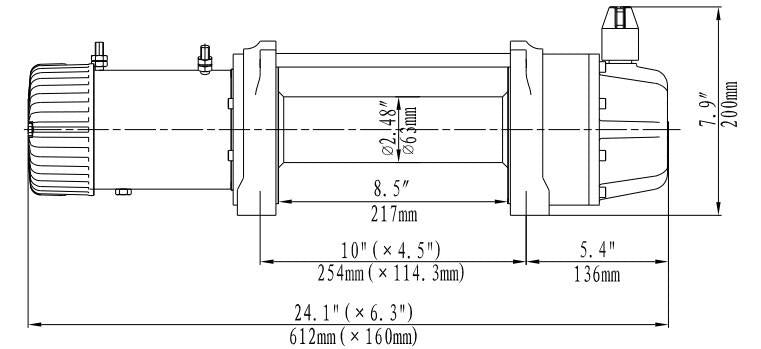

RATED LINE PULL 9500lb (4309kg) MOTOR SERIES WOUND (12V) 5.4KW/7.2HP - IP67 RATED GEAR TRAIN FULL STEEL 3 STAGE PLANETARY GEAR RATIO 108:1 BRAKE AUTOMATIC RATCHET LOAD HOLDING IN THE GEARBOX CABLE TYPE SYNTHETIC ROPE CABLE SIZE 11MM X 25M DRUM SIZE 63MM X 217MM MOUNTING BOLT PATTERN PATTERN 254MM X 114.3MM OVERALL DIMENSIONS 612MM X 160MM X 200MM REMOTE CONTROL 3.7M HANDHELD REMOTE/WIRELESS REMOTE BATTERY LEADS 2 X 1.8M HEAVY DUTY LEADS FINISH BLACK POWDER COAT NET WEIGHT 31.4KG GROSS WEIGHT 33.4KG (INCLUDES PACKAGING) WARRANTY 5 YEAR ELECTRICAL LIMITED LIFETIME MECHANICAL
