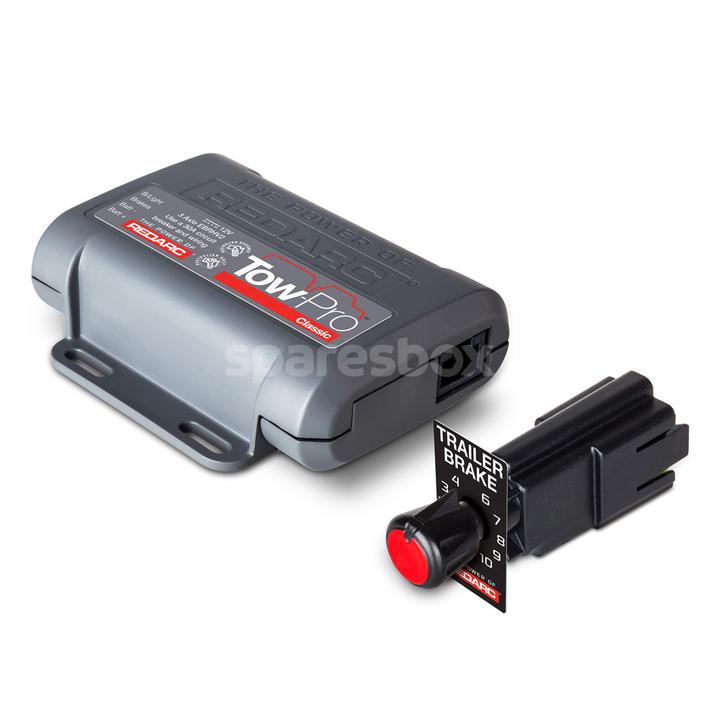

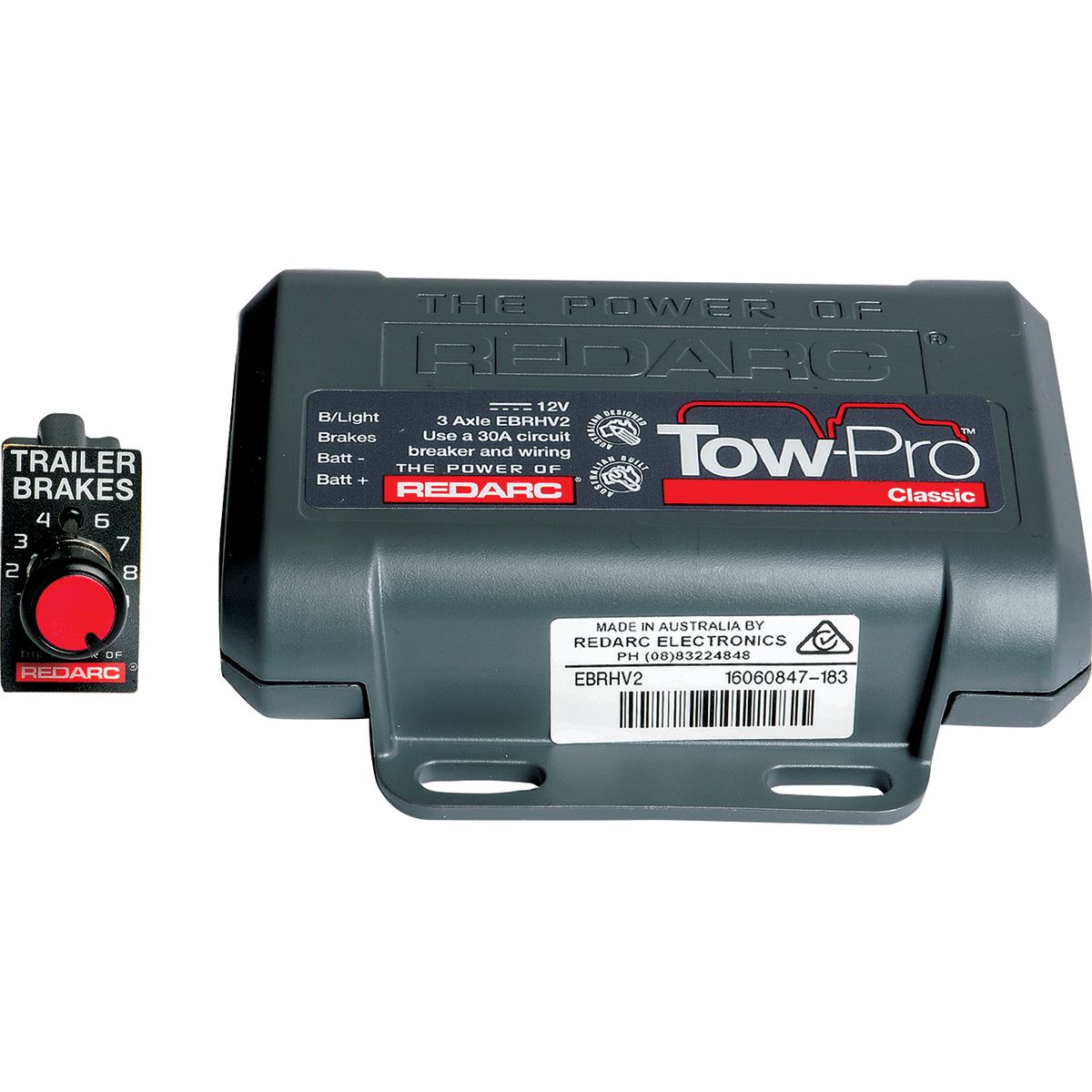

REDARC Tow-Pro Classic Brake Controller EBRHV2
REDARC Tow-Pro Classic Brake Controller EBRHV2
Regular price
$298.95 AUD
Regular price
Sale price
$298.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
The REDARC Tow-Pro Classic Brake Controller is designed to offer an easy-to-use, safe braking system for trailers, campers, boat trailers, and more. This controller is REDARC's next-generation Electric Brake Remote Head, and while it retains the classic look and feel of the EBRH, it offers a slew of performance improvements and quality of life enhancements.
Chief among these enhancements is the inclusion of a user-controlled mode of braking, which affords you total control over your braking levels whether you're using the footbrake or have applied the override. The adjustment knob on the unit lets you adjust the braking force from minimal braking (0) up to the maximum braking force (10). The Tow-Pro Classic brake controller operates electric and electric/hydraulic trailer brakes without requiring manual selection, and it is AL-KO ESC and Dexter Sway Control System compliant.
The REDARC Brake Controller is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Model number: EBRHV2
Input (Operating) Voltage: 9 - 16VDC
Input Fuse Rating: 30A (Circuit Breaker)
Standby Current Draw: <10mA
Output System Voltage: 12VDC
Output Current Rating (Cont.): 25A
Length (mm): 85
Width (mm): 100
Height (mm): 30
Weight (kg): 0.2
Chief among these enhancements is the inclusion of a user-controlled mode of braking, which affords you total control over your braking levels whether you're using the footbrake or have applied the override. The adjustment knob on the unit lets you adjust the braking force from minimal braking (0) up to the maximum braking force (10). The Tow-Pro Classic brake controller operates electric and electric/hydraulic trailer brakes without requiring manual selection, and it is AL-KO ESC and Dexter Sway Control System compliant.
The REDARC Brake Controller is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Model number: EBRHV2
Input (Operating) Voltage: 9 - 16VDC
Input Fuse Rating: 30A (Circuit Breaker)
Standby Current Draw: <10mA
Output System Voltage: 12VDC
Output Current Rating (Cont.): 25A
Length (mm): 85
Width (mm): 100
Height (mm): 30
Weight (kg): 0.2
