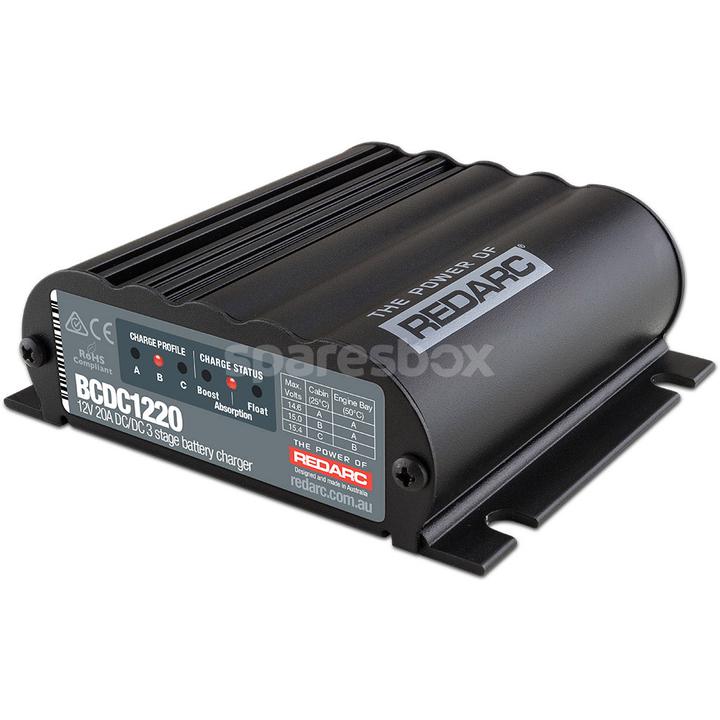

REDARC Smart Start DC to DC Battery Charger BCDC1220

The BCDC1220 Smart Start Battery Charger is a REDARC DC to DC Charger, designed to keep your battery charged while you're on the road. It's multi-stage battery charging system is intended to keep your auxiliary battery charged up to 100%. Its wide operating of 9-32V affords you the versatility of being able to charge either a 12V or 24V system. The charger boasts a range of Smart features, including the ability to provide a unique charging profile for every specific battery type, allowing it to achieve and maintain a 100% charge for your auxiliary battery, no matter its type. The Smart Charger is compact, easy to install, and completely sealed to keep it protected from water, dust, and vibration. Its protections make it a great fit for any driver - even those who enjoy taking to Australia's harshest conditions, like outback tracks and deep water crossings. It's even hardy enough for marine applications!

The Charger will act as a start-battery isolator to help protect the start the battery whenever its voltage level gets too low. The unit features no fan to ensure quiet operation, and - in addition to standard lead acid starter batteries - it is compatible with a huge range of battery types including AGM, gel, calcium content, and VRLA batteries.

This REDARC DC-to-DC charger is delivered with a 2-year manufacturer's warranty covering faults and material defects.

Specs

Input (Operating) Voltage: 9 - 32VDC

Maximum Charging Voltage: 15.4V

Output System Voltage: 12VDC

Input Current (Max.): 20A

Output Fuse Rating: 40A

Standby Current Draw: <100mA

Output Current Rating (Cont.): 20A

Input Fuse Rating: 40A

Output Power: 300W

Length (mm): 120

Width (mm): 100

Height (mm): 37

Weight (kg): 0.485

Type Approval: CE
