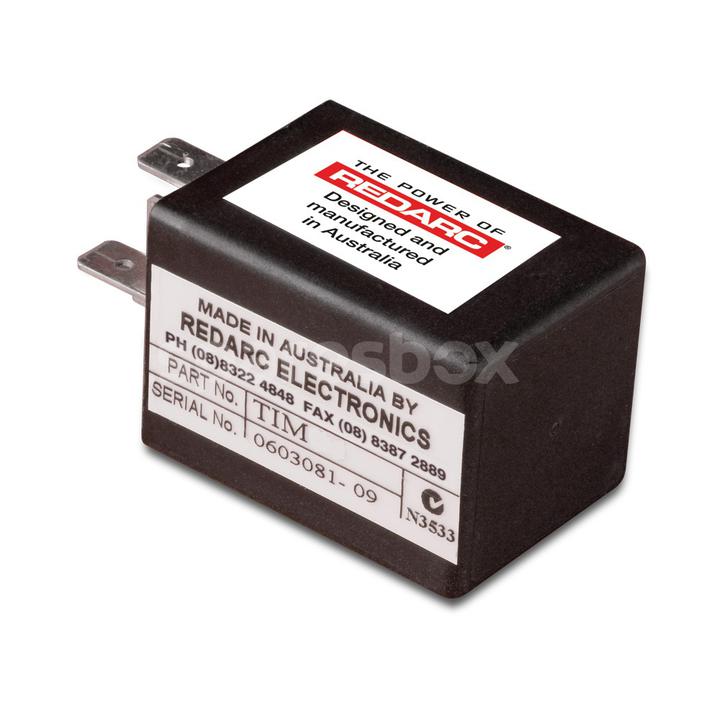

REDARC Relay Timer Delayed Off 12/24V TIM05
REDARC Relay Timer Delayed Off 12/24V TIM05
Regular price
$171.95 AUD
Regular price
Sale price
$171.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
The REDARC Multi-Function Timer is a timer relay for 12V and 24V negative-ground automotive systems and can provide a maximum current of 10A. You can alter the time and switching mode settings and it can be used with both mobile and stationary installations. Designed so that it can plug into a standard automotive relay base, the TIM05 has the same pin numbers as a standard automotive relay and has similar operation to a changeover relay.
SPECIFICATIONS
Warranty: 2 Years
Input (Operating) Voltage: 12V/24V
Output Current Rating (Cont.): 10A
Length (mm): 75
Width (mm): 30
Height (mm): 24
Weight (kg): 0.07
USE
- The timer switches the internal relay to provide output on PIN 87. (Positive output only)
- The timer is started by switching pin 86 ON or OFF (depending on Switch 1).
- Use Switch 2 to select time range between SECONDS and MINUTES.
- Use the potentiometer to adjust time (increasing in clockwise direction).
SPECIFICATIONS
Warranty: 2 Years
Input (Operating) Voltage: 12V/24V
Output Current Rating (Cont.): 10A
Length (mm): 75
Width (mm): 30
Height (mm): 24
Weight (kg): 0.07
USE
- The timer switches the internal relay to provide output on PIN 87. (Positive output only)
- The timer is started by switching pin 86 ON or OFF (depending on Switch 1).
- Use Switch 2 to select time range between SECONDS and MINUTES.
- Use the potentiometer to adjust time (increasing in clockwise direction).
