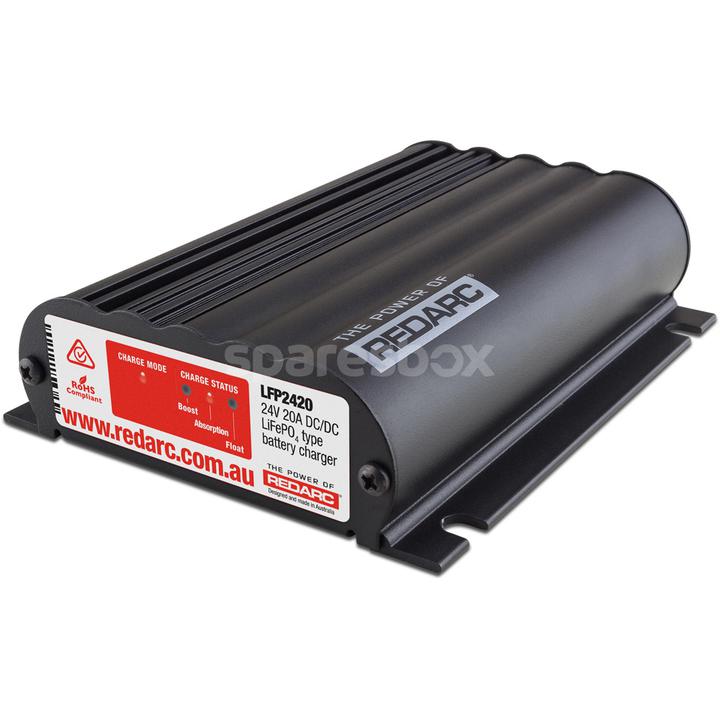

REDARC Lithium DC to DC Battery Charger 24V 20A LFP2420

A three-stage charger designed for vehicles with an input range of 9-32V DC, this REDARC Lithium DC-to-DC Battery Charger ensures that LiFeP04 batteries are charged to their optimal level. The charger employs chemistry-based algorithms to ensure both precision and reliability.

The device is of particular use with heavy applications such as trucking or charging battery banks. An MPPT Solar Regulator means that you can use your 12V solar panels to charge your 24V auxiliary batteries – a must for anyone seeking total self-reliance.

SPECIFICATIONS

Current Rating (Continuous 20°C): 20A
Input Fuse Rating: 60A/40A (Not supplied)
Output Fuse Rating: 30A (Not supplied)
Output Power: 600W
Input (Operating) Voltage: 9-32V
Open Circuit Voltage: 17.5V-32.0V
Battery Type: LiFePO4
Absorption Stage Voltage Level: 28.8V
Float Stage Voltage Level: 27.2V
No Load Current: <100mA
Standby Current Draw: <8mA
Ambient Temperature: -20ºC to +80ºC
Minimum O/P Battery Volts: 4.2V
Weight (kg): 0.68
Main Unit Dimensions: 150x120x37mm
Warranty: 2 Years
Type Approval: CE, C-Tick, AS/NZS CISPR11:2004
