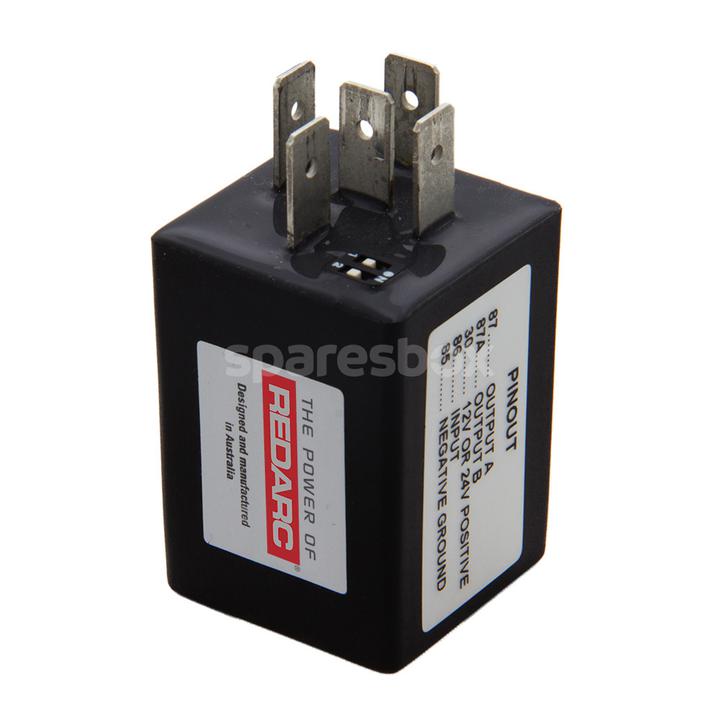

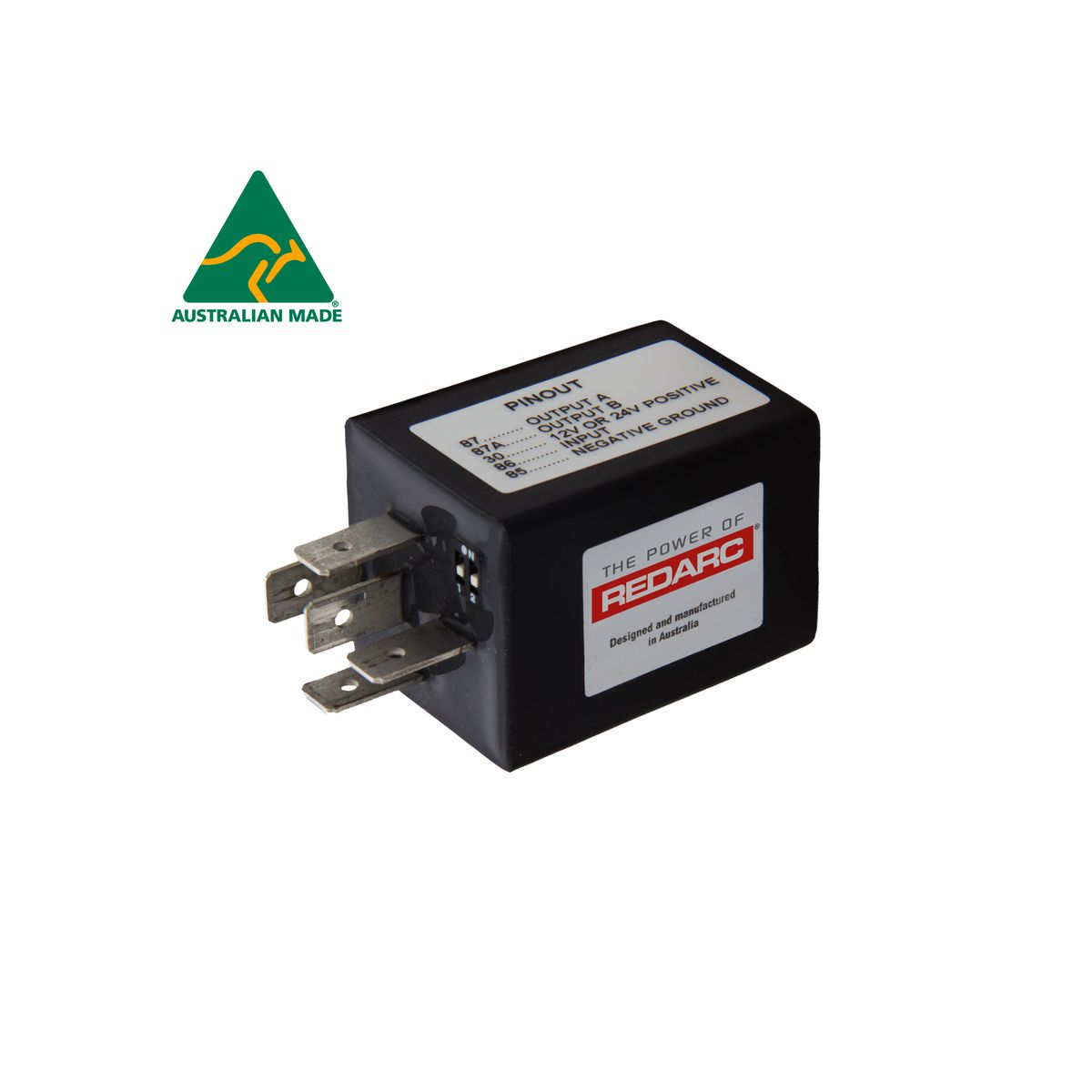

REDARC Latching Chopper Relay 10A CR1224L
REDARC Latching Chopper Relay 10A CR1224L
Regular price
$180.95 AUD
Regular price
Sale price
$180.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
The REDARC Latching 'Chopper' Relay is a relay boasting a maximum current of 10 amps, designed for use across a huge array of systems including everything from fog lights to power windows. The compact design and extensive compatibility makes this device a natural fit for your vehicle.
Ideally suited for use with fog light switches, rear demisters, and any dash switches that are required to latch on from a momentary push, this REDARC Latching 'Chopper' Relay boasts two outputs for added versatility. The ingenious dual-output setup can alternately latch on or off with a single, momentary action from a push-button switch. The output will remain in the correct state until it receives another input signal, which will cause the outputs to swap.
The versatility of this item can be extended even further by pairing it with a Bi-Metallic switch, allowing it to provide auto-off directional motor control for systems like electric car windows.
The REDARC Latching Chopper Relay 10A is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Input (Operating) Voltage: 12V/24V
Output Current Rating (Cont.): 10A
Length: 81mm
Width: 31mm
Height: 30mm
Weight: 0.09kg
Ideally suited for use with fog light switches, rear demisters, and any dash switches that are required to latch on from a momentary push, this REDARC Latching 'Chopper' Relay boasts two outputs for added versatility. The ingenious dual-output setup can alternately latch on or off with a single, momentary action from a push-button switch. The output will remain in the correct state until it receives another input signal, which will cause the outputs to swap.
The versatility of this item can be extended even further by pairing it with a Bi-Metallic switch, allowing it to provide auto-off directional motor control for systems like electric car windows.
The REDARC Latching Chopper Relay 10A is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Input (Operating) Voltage: 12V/24V
Output Current Rating (Cont.): 10A
Length: 81mm
Width: 31mm
Height: 30mm
Weight: 0.09kg
