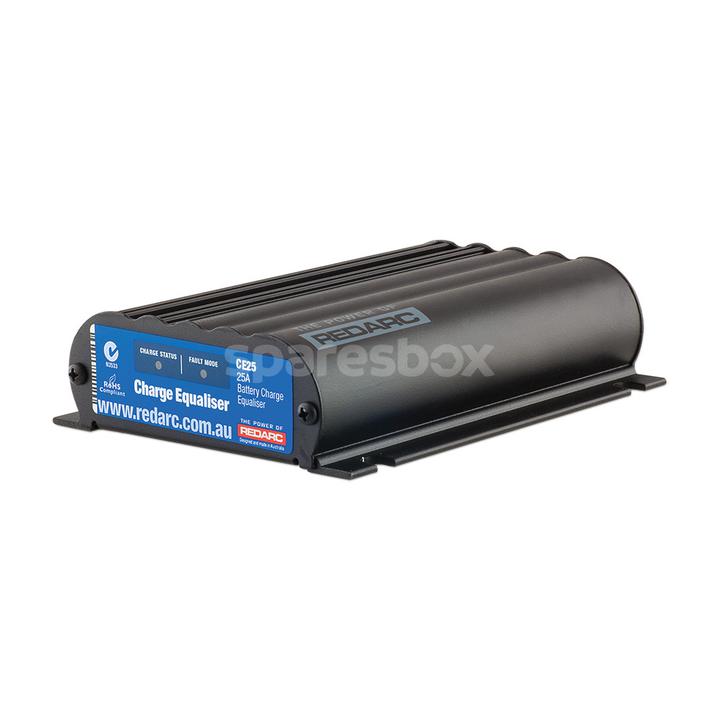

REDARC Charge Equaliser 24-12V 25A DC CE25
REDARC Charge Equaliser 24-12V 25A DC CE25
Regular price
$662.95 AUD
Regular price
Sale price
$662.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Prevent your 24-volt batteries from draining at different speeds, requiring annoying and irregular replacements. Designed to allow 12 volts to be tapped from the centre of a series-connected, two-battery, 24-volt DC electrical system, the REDARC Charge Equaliser ensures that that the two batteries remain at an equal charge, while boasting a maximum output of 25 amps.
The new-style CE25 battery equaliser incorporates technology from the REDARC's award-winning BCDC range, making installation a simpler process while also featuring input isolation, which negates the need for any input relay or isolator.
The REDARC Charge Equaliser is a perfect choice for systems that don't have space for an additional, separate 12V battery to be installed, while also being a cost-effective choice for budget-conscious drivers. The device draws its power straight from the battery rather than from a current-limited device such as a voltage reducer. This means that the peak current it can produce is limited only by the batteries and the charger itself, allowing for high current production when your system calls for it.
The combination of a high peak current capability and rapid transient response time makes this Charge Equaliser a great match for loads that require a clean, safe, and stable 12-volt supply.
The REDARC CE25 Battery Equaliser is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Input (Operating) Voltage: 20-32VDC
Output Current Rating (Cont.): 25A
Input Fuse Rating: 40A
Output Fuse Rating: 40A
Output System Voltage: 6-16VDC
Length: 150mm
Width: 120mm
Height: 37mm
Weight: 0.68kg
Product Code: CE25
The new-style CE25 battery equaliser incorporates technology from the REDARC's award-winning BCDC range, making installation a simpler process while also featuring input isolation, which negates the need for any input relay or isolator.
The REDARC Charge Equaliser is a perfect choice for systems that don't have space for an additional, separate 12V battery to be installed, while also being a cost-effective choice for budget-conscious drivers. The device draws its power straight from the battery rather than from a current-limited device such as a voltage reducer. This means that the peak current it can produce is limited only by the batteries and the charger itself, allowing for high current production when your system calls for it.
The combination of a high peak current capability and rapid transient response time makes this Charge Equaliser a great match for loads that require a clean, safe, and stable 12-volt supply.
The REDARC CE25 Battery Equaliser is delivered with a 2-year manufacturer's warranty covering faults and material defects.
Specs
Input (Operating) Voltage: 20-32VDC
Output Current Rating (Cont.): 25A
Input Fuse Rating: 40A
Output Fuse Rating: 40A
Output System Voltage: 6-16VDC
Length: 150mm
Width: 120mm
Height: 37mm
Weight: 0.68kg
Product Code: CE25
