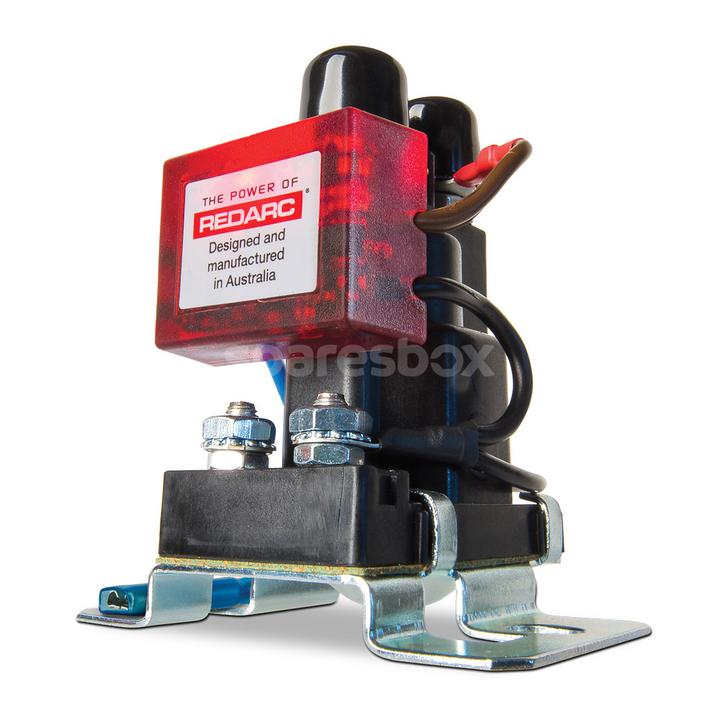

REDARC Battery Isolator BMS Load Disconnect SBI12-BLD
REDARC Battery Isolator BMS Load Disconnect SBI12-BLD
Regular price
$199.95 AUD
Regular price
Sale price
$199.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
REDARC Battery Isolator BMS Load Disconnect SBI12-BLD
Designed for use with the REDARC Manager15 or Manager30 battery management systems, the REDARC Battery Isolator BMS Load Disconnect works to protect your auxiliary battery from excessive discharge.
The unit's voltage-spike protection components exist to limit the risk of damage to the unit or to your vehicle's equipment.
SPECIFICATIONS
System Voltage: 12V Nominal
Turn ON Voltage: 10.2V
Turn OFF Voltage: 10.0V
Turn ON Delay: 5 sec
Turn OFF Delay: 10 sec
Max. Cont. Current: 100 Amps
Max. Inrush Current: 400Amps
Standby Current: < 5mA
Operating Current: <0.1A
Dimensions: 75 x 70 x 80mm
Weight (g): 200
Warranty: 2
Standards: CE, C-Tick, AS/NZS CISPR11:2004
Main Stud Torque: 5-6.2 Nm
Designed for use with the REDARC Manager15 or Manager30 battery management systems, the REDARC Battery Isolator BMS Load Disconnect works to protect your auxiliary battery from excessive discharge.
The unit's voltage-spike protection components exist to limit the risk of damage to the unit or to your vehicle's equipment.
SPECIFICATIONS
System Voltage: 12V Nominal
Turn ON Voltage: 10.2V
Turn OFF Voltage: 10.0V
Turn ON Delay: 5 sec
Turn OFF Delay: 10 sec
Max. Cont. Current: 100 Amps
Max. Inrush Current: 400Amps
Standby Current: < 5mA
Operating Current: <0.1A
Dimensions: 75 x 70 x 80mm
Weight (g): 200
Warranty: 2
Standards: CE, C-Tick, AS/NZS CISPR11:2004
Main Stud Torque: 5-6.2 Nm
