PROJECTA Battery Tray Isuzu D-Max HDBT400
PROJECTA Battery Tray Isuzu D-Max HDBT400
Regular price
$313.95 AUD
Regular price
Sale price
$313.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Dmax Auto/Manual 3 Litre 4JJ1-TC Turbo Diesel and MU-X Auto/Manual 3 Litre 4JJ1-TC Turbo Diesel (2012>)
Custom-made for the Isuzu Dmax and MU-X, the HDBT400 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES

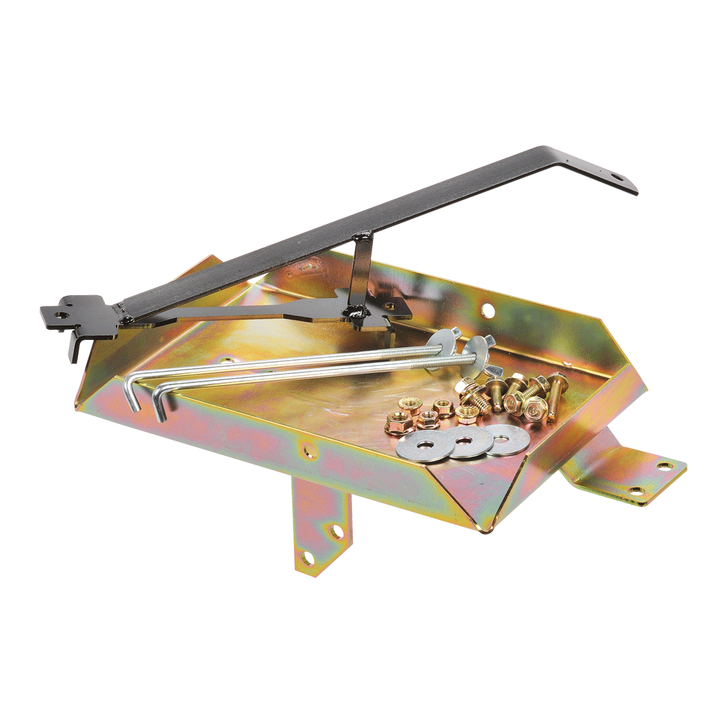

Tray
Special Top Mount
J Bolts
2 x M8 Bolts
5 x M6 Bolts
1 x M6 Bolts Long
4 x M6 Nuts
1 x M8 Bolt
1 x M8 Nut
3 x M8 Body Washer
1 x 200mm Cable Tie
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 x H200
Max Battery Weight 19.6Kg
Recommended batteries Optima D34 & Exide Orbital
(Fully Sealed AGM type due to close proximity to wiring and computer)
Approximate fitting time 1.5 hours
Special tools Right Angle Drill
Recommended Dual Battery System P/n: IDC25, DBC100, DBC150, VSR100, VSR200
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove original starting battery.
3. Unclip the wiring looms from around the battery and firewall.
4. The white loom bracket on the firewall will need to be bent up for fitting of the battery.
5. The metal pipe that runs under the scuttle panel will require manipulating to fit battery
6. Unbolt and cut off mounting bracket for fuel lines leaving the fuel line connected to each other and re-route fuel lines behind fuel filter and filter mount.
7. Place tray in position cable tie the fuel lines to the bracket indent in the tray.
8. Manoeuvre tray into the correct position by lining up the 2 x M6 bolt holes directly behind the original battery tray. Do not tighten bolts.
9. Locate and hand tighten 1 x M6 Bolt, Nut and Washer through the hole next to fuel filter.
10. Locate and tighten 2 x M6 Bolts and nuts through inner guard and lower tray arm.
11. Using a right angle drill, and an 8mm drill bit. Drill through the rear tab on the tray behind the fuel filter into the inner guard. BE CAREFUL NOT DAMAGE FUEL LINES OR WIRING LOOMS.
12. Using M8 Bolt push through the drilled hole through tray and inner guard tighten the underside using M8 body washer and M8 nut.
13. Tighten all bolts and nuts connecting the tray to the car.
14. Fit the negative terminal and cable to the battery, then install the battery with the negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSITIVE TERMINAL TO REAR.
15. Unbolt scuttle panel bolt and use 1 x M6 Bolt long and nut in the following ways:
a. Exide Orbital – Top mount sits above the scuttle panel use bolt and washer.
b. Optima D34 – Top mount sits under scuttle panel.
Custom-made for the Isuzu Dmax and MU-X, the HDBT400 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
2 x M8 Bolts
5 x M6 Bolts
1 x M6 Bolts Long
4 x M6 Nuts
1 x M8 Bolt
1 x M8 Nut
3 x M8 Body Washer
1 x 200mm Cable Tie
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 x H200
Max Battery Weight 19.6Kg
Recommended batteries Optima D34 & Exide Orbital
(Fully Sealed AGM type due to close proximity to wiring and computer)
Approximate fitting time 1.5 hours
Special tools Right Angle Drill
Recommended Dual Battery System P/n: IDC25, DBC100, DBC150, VSR100, VSR200
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove original starting battery.
3. Unclip the wiring looms from around the battery and firewall.
4. The white loom bracket on the firewall will need to be bent up for fitting of the battery.
5. The metal pipe that runs under the scuttle panel will require manipulating to fit battery
6. Unbolt and cut off mounting bracket for fuel lines leaving the fuel line connected to each other and re-route fuel lines behind fuel filter and filter mount.
7. Place tray in position cable tie the fuel lines to the bracket indent in the tray.
8. Manoeuvre tray into the correct position by lining up the 2 x M6 bolt holes directly behind the original battery tray. Do not tighten bolts.
9. Locate and hand tighten 1 x M6 Bolt, Nut and Washer through the hole next to fuel filter.
10. Locate and tighten 2 x M6 Bolts and nuts through inner guard and lower tray arm.
11. Using a right angle drill, and an 8mm drill bit. Drill through the rear tab on the tray behind the fuel filter into the inner guard. BE CAREFUL NOT DAMAGE FUEL LINES OR WIRING LOOMS.
12. Using M8 Bolt push through the drilled hole through tray and inner guard tighten the underside using M8 body washer and M8 nut.
13. Tighten all bolts and nuts connecting the tray to the car.
14. Fit the negative terminal and cable to the battery, then install the battery with the negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSITIVE TERMINAL TO REAR.
15. Unbolt scuttle panel bolt and use 1 x M6 Bolt long and nut in the following ways:
a. Exide Orbital – Top mount sits above the scuttle panel use bolt and washer.
b. Optima D34 – Top mount sits under scuttle panel.
