Battery Tray for Auto/Manual Prado 150 Series 08, 2.8 Litre Turbo Diesel (Sep 2016 >)
*Not suitable for Kakadu Version

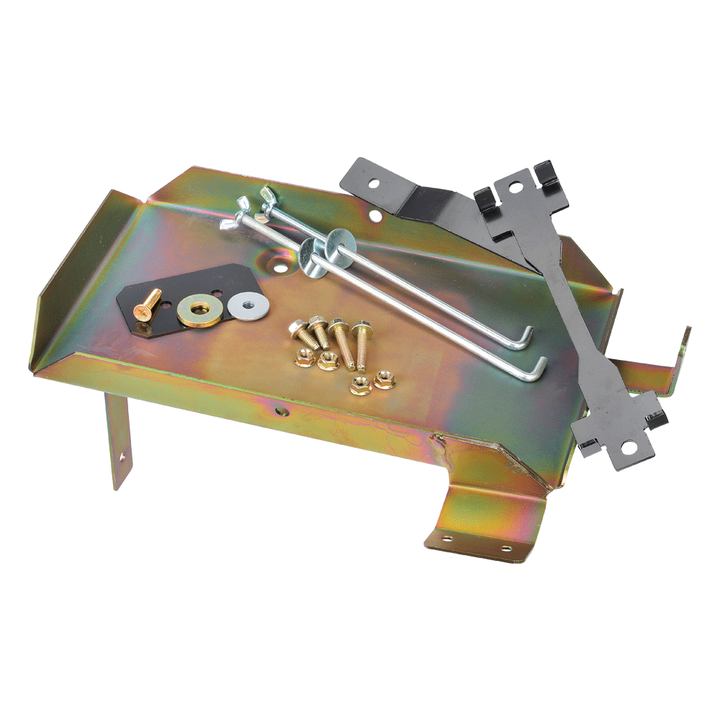

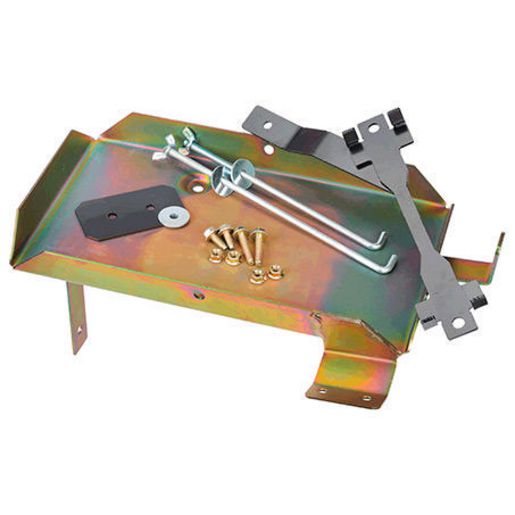

Custom-made for the Toyota Prado 150 Series 08, the HDBT118 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
Support Plate
J Bolts
3 x M6 Wizlock Nuts
4 x M6 Bolts (15mm)
1 x M6 Bolts (30mm)
1 x M6 x 26mm Body Washer
1 x M6 Nut
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS27-97 & Century N70TMF
Approximate fitting time 1 hour
Recommended Dual Battery System P/No: IDC25
Tray Location Engine bay, drivers side front
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate area for tray. Left of the radiator at the front.
3. Remove OE bolts from earth plate in inner guard and A/C support bracket near tray area.
4. Remove plastic electrical cable mount, inner skirt below A/C pipe.
5. Remove front half of inner wheel arch guard liner and remove indicated OE bolt and install the supplied M6 x 30mm long bolt from inside the inner guard partially into engine bay.
6. Fit tray in position pushing the M6 bolt that is out of the guard through the hole on the lower arm of the tray
7. Bolt tray in, put earth plate over tray arm.
8. Drill two M6 holes through tray bracket into wheel arch.
9. Place 2 x M6 bolt (15mm) through the drilled holes with the support bracket on the underside of the wheel arch. Tighten bolts with M6 nuts.
10. Remove the M6 x 30mm bolt from inside the inner guard, refit inner guard liner, replace M6 x 30mm bolt with body washer and tighten to the lower tray arm using the M6 nut.
11. Fit battery.
12. Fit special top mount and using the M6 bolt and nut, secure to the front radiator support panel.
13. Use longer 'J' bolt to attach to vehicle mounting point located in front of air box. Tighten battery into position.
14. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet.
*Not suitable for Kakadu Version
Custom-made for the Toyota Prado 150 Series 08, the HDBT118 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
Support Plate
J Bolts
3 x M6 Wizlock Nuts
4 x M6 Bolts (15mm)
1 x M6 Bolts (30mm)
1 x M6 x 26mm Body Washer
1 x M6 Nut
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS27-97 & Century N70TMF
Approximate fitting time 1 hour
Recommended Dual Battery System P/No: IDC25
Tray Location Engine bay, drivers side front
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate area for tray. Left of the radiator at the front.
3. Remove OE bolts from earth plate in inner guard and A/C support bracket near tray area.
4. Remove plastic electrical cable mount, inner skirt below A/C pipe.
5. Remove front half of inner wheel arch guard liner and remove indicated OE bolt and install the supplied M6 x 30mm long bolt from inside the inner guard partially into engine bay.
6. Fit tray in position pushing the M6 bolt that is out of the guard through the hole on the lower arm of the tray
7. Bolt tray in, put earth plate over tray arm.
8. Drill two M6 holes through tray bracket into wheel arch.
9. Place 2 x M6 bolt (15mm) through the drilled holes with the support bracket on the underside of the wheel arch. Tighten bolts with M6 nuts.
10. Remove the M6 x 30mm bolt from inside the inner guard, refit inner guard liner, replace M6 x 30mm bolt with body washer and tighten to the lower tray arm using the M6 nut.
11. Fit battery.
12. Fit special top mount and using the M6 bolt and nut, secure to the front radiator support panel.
13. Use longer 'J' bolt to attach to vehicle mounting point located in front of air box. Tighten battery into position.
14. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet.
