PROJECTA Battery Tray fits Toyota Prado 150 HDBT112
PROJECTA Battery Tray fits Toyota Prado 150 HDBT112
Regular price
$313.95 AUD
Regular price
Sale price
$313.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Toyota Prado Auto/Manual 150 Diesel 1KD–FTV, 3.0 Litre Turbo Diesel (Jan 2010 - Aug 2016)
Custom-made for the Toyota Prado 150, the HDBT112 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!

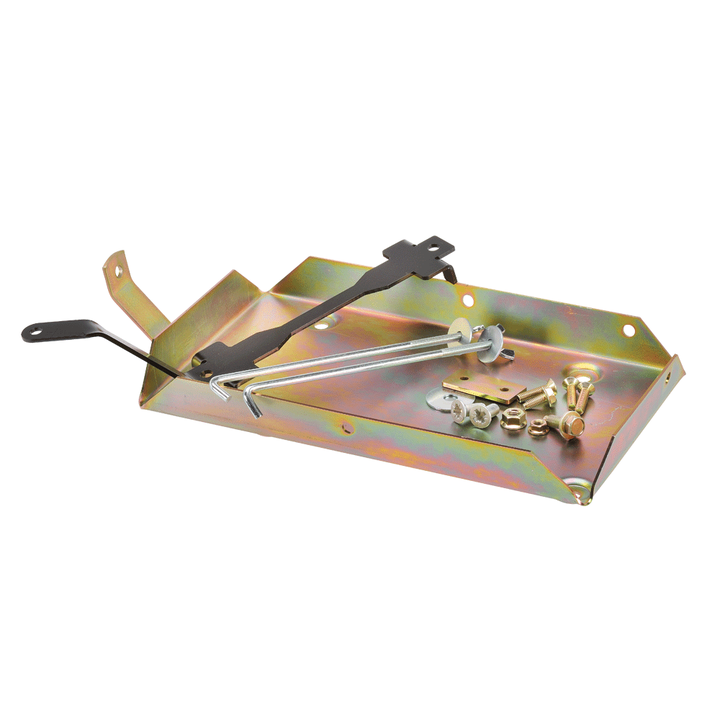

KIT INCLUDES
Tray
Special Top Mount
AC Bracket
2 x M8 Bolts counter sunk
3 x M6 Bolt counter sunk
1 x M6 Bolts Hex
1 x M6 Whizlock Nut
1 x M8 Bolt Long
1 x M8 Body Washer
1 x M8 Whizlock Nut
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Driver side next to radiator support
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the area where the tray will be fitted. Remove bolt from the earth on inner guard and discard.
3. Remove A/C pipe bracket from inner guard.DO NOT LOOSEN TOP NUT IN CIRCLE A.
4. Remove A/C bracket from rubber mount on A/C pipe DISCARD.
5. Bolt provided A/C Bracket to AC pipe. Use original nuts & bolts.
6. Place tray into position and loosely put in all bolts. 2 x M8 counter-sunk, 2 x M6 counter-sunk into base of tray. Refit earth wires between the inner guard and battery tray arm. Use provided M6 bolt to secure.
7. Bolt A/C bracket to tray. Use 1xM6 counter-sunk with nut.
8. Tighten all bolts to secure the tray.
9. Ensure adequate clearance on all A/C pipes, radiator support panel and rear of engine bay.
10. Place battery into position and fit special top mount. Support will align to hole in radiator support, drill plastic to clear hole and secure with M8 bolt use washer and M8 nut underneath. Fit and tighten J bolts.
11. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
Custom-made for the Toyota Prado 150, the HDBT112 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
AC Bracket
2 x M8 Bolts counter sunk
3 x M6 Bolt counter sunk
1 x M6 Bolts Hex
1 x M6 Whizlock Nut
1 x M8 Bolt Long
1 x M8 Body Washer
1 x M8 Whizlock Nut
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Driver side next to radiator support
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the area where the tray will be fitted. Remove bolt from the earth on inner guard and discard.
3. Remove A/C pipe bracket from inner guard.DO NOT LOOSEN TOP NUT IN CIRCLE A.
4. Remove A/C bracket from rubber mount on A/C pipe DISCARD.
5. Bolt provided A/C Bracket to AC pipe. Use original nuts & bolts.
6. Place tray into position and loosely put in all bolts. 2 x M8 counter-sunk, 2 x M6 counter-sunk into base of tray. Refit earth wires between the inner guard and battery tray arm. Use provided M6 bolt to secure.
7. Bolt A/C bracket to tray. Use 1xM6 counter-sunk with nut.
8. Tighten all bolts to secure the tray.
9. Ensure adequate clearance on all A/C pipes, radiator support panel and rear of engine bay.
10. Place battery into position and fit special top mount. Support will align to hole in radiator support, drill plastic to clear hole and secure with M8 bolt use washer and M8 nut underneath. Fit and tighten J bolts.
11. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
