PROJECTA Battery Tray fits Toyota 70 Series V8 HDBT100
PROJECTA Battery Tray fits Toyota 70 Series V8 HDBT100
Regular price
$456.95 AUD
Regular price
Sale price
$456.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Manual Landcruiser 70 Series 1VD-FTV, 4.5 Litre V8 Turbo Diesel (ABS) Wagon/Ute (2007-September 2016)

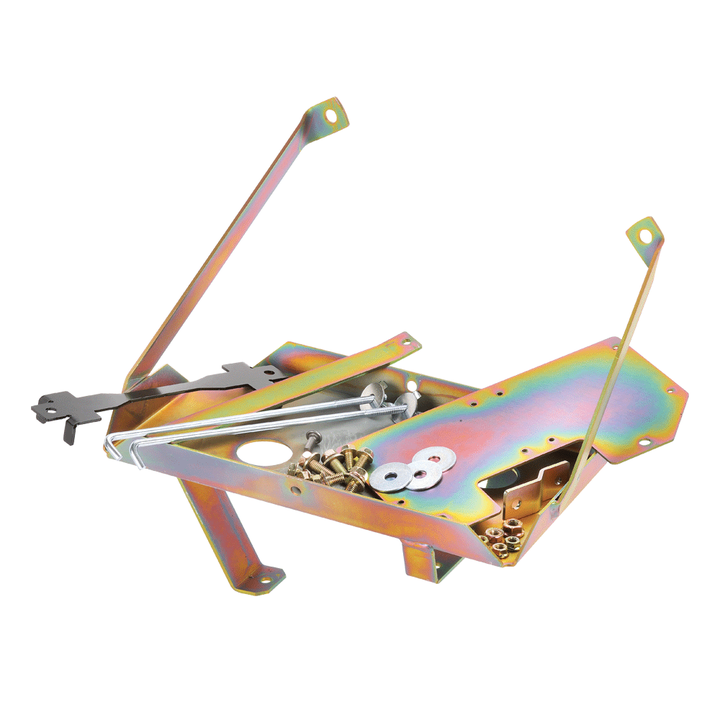

Custom-made for the Toyota Landcruiser 70 Series, the HDBT100 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
J Bolts
Special Top Mount
1 x M6 Bolt Counter Sunk
1 x M6 Nut
1 x Body washer
3 x M8 Bolt Long
1 x M8 Bolt Short for earth strap
SPECIFICATIONS
Max Battery Size (mm) L304 x W174 x H225
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27–97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System Any Projecta system would be fine (P/n: IDC25, DBC100, DBC150, VSR100 or VSR200)
Tray Location Engine Bay, Drivers side Front next to radiator support
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the position of where the battery tray will be placed. Ensure the area is clear.
3. Fit the tray in position and hand tighten the 3 x M8 long bolts that secure the tray to the car. Use existing captive nuts on the vehicle.
4. Drill 6mm hole for the M6 bolts in the corner of the tray. Fit M6 bolt through the tray with the body washer and nut on the underside of the guard and tighten.
5. Tighten all the M8 bolts from the tray to the body of the vehicle.
6. Fit the Battery, J Bolts in the tray and fit the special top mount. You will need to remove the existing bolt from radiator support frame so the special top mount can be fitted. Use the supplied M8 long if required.
7. Ensure bonnet can close without hitting the newly installed battery and tray.
8. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System.
