PROJECTA

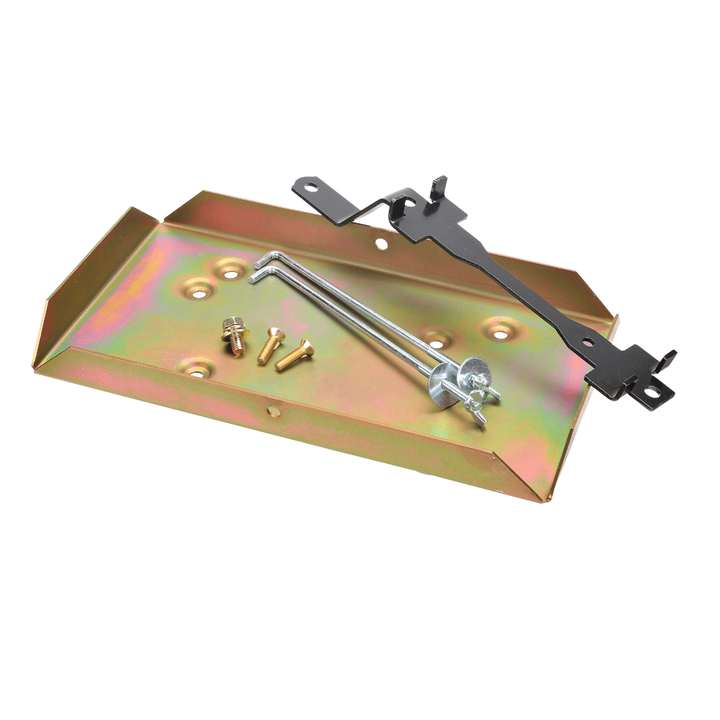

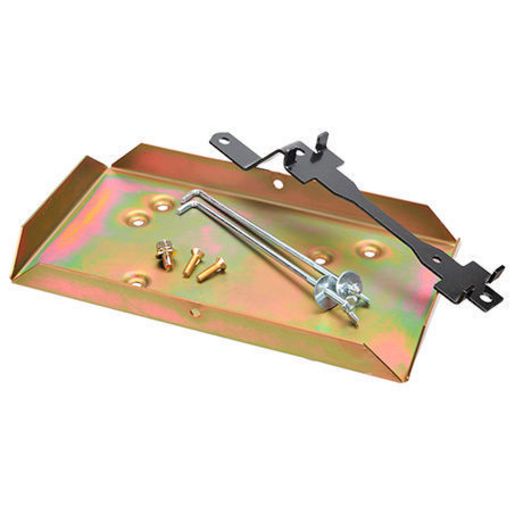

PROJECTA Battery Tray fits Toyota 200 Series HDBT120
PROJECTA Battery Tray fits Toyota 200 Series HDBT120
Regular price
$312.95 AUD
Regular price
Sale price
$312.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Landcruiser Auto 200 DS Series, 1VD-FTV 4.5 Litre V8 Turbo Diesel (Sep 2016 >)
Custom-made for the Toyota Landcruiser 200 DS Series, the HDBT120 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
2 x M6 Countersunk Bolts
1 x M8 Bolt
2 x J Bolts
SPECIFICATIONS
Max Battery Size (mm) L300x W174 x H220
Max Battery Weight 28Kg
Recommended batteries Exide LCS27-97and Century NS70TMF
Approximate fitting time 30 minutes
Recommended Dual Battery System P/No: IDC25, DBC150, VSR200
Tray Location Engine Bay, Drivers Side Front
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the tray behind the driver's side headlight.
3. Locate the two captive nuts with the two holes in the tray and secure with the 2 x M6 countersunk bolts.
4. Remove the radiator cover panel, replace after battery secured
5. Fit Auxiliary battery.
6. Place the Special Top Mount to secure the battery with the J Bolts and bolt the front of the Special Top Mount to the radiator support panels using the M8 Bolt to the captive nut on the panel.
7. Use the factory J bolt mount near the air cleaner in place of the hole in the tray.
8. Replace radiator cover panel.
9. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray does not hit the bonnet.
Custom-made for the Toyota Landcruiser 200 DS Series, the HDBT120 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
2 x M6 Countersunk Bolts
1 x M8 Bolt
2 x J Bolts
SPECIFICATIONS
Max Battery Size (mm) L300x W174 x H220
Max Battery Weight 28Kg
Recommended batteries Exide LCS27-97and Century NS70TMF
Approximate fitting time 30 minutes
Recommended Dual Battery System P/No: IDC25, DBC150, VSR200
Tray Location Engine Bay, Drivers Side Front
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the tray behind the driver's side headlight.
3. Locate the two captive nuts with the two holes in the tray and secure with the 2 x M6 countersunk bolts.
4. Remove the radiator cover panel, replace after battery secured
5. Fit Auxiliary battery.
6. Place the Special Top Mount to secure the battery with the J Bolts and bolt the front of the Special Top Mount to the radiator support panels using the M8 Bolt to the captive nut on the panel.
7. Use the factory J bolt mount near the air cleaner in place of the hole in the tray.
8. Replace radiator cover panel.
9. Reconnect the negative battery terminal to the main starter battery. Before closing the bonnet make sure the battery and tray does not hit the bonnet.
