PROJECTA Battery Tray fits Toyota 100 Series HDBT106
PROJECTA Battery Tray fits Toyota 100 Series HDBT106
Regular price
$313.95 AUD
Regular price
Sale price
$313.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Landcruiser Auto/Manual 100 Series 1HZ, 4.2 Litre Diesel, 1FZ-FE – 4.5 Litre Petrol (1998-2007)
Custom-made for the Toyota Landcruiser 100 Series 1HZ, the HDBT106 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!

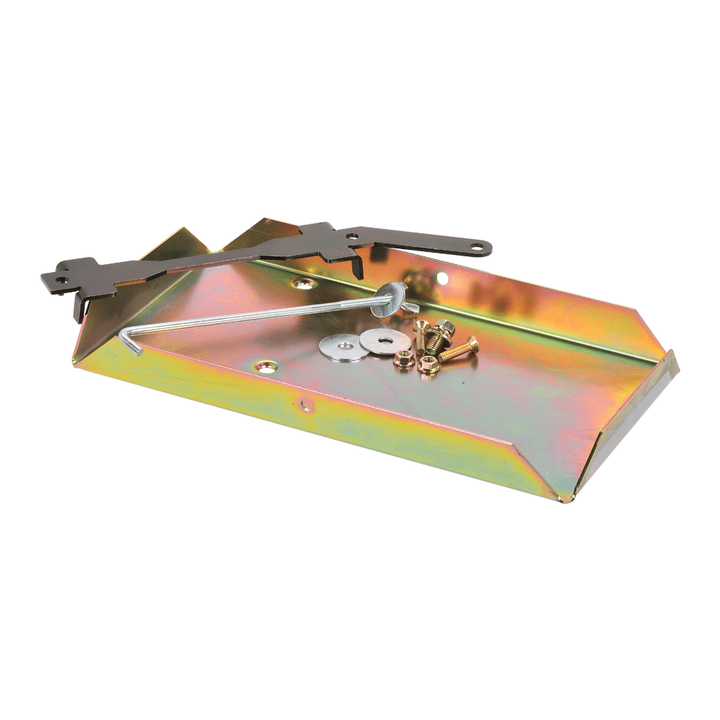

KIT INCLUDES
Tray
Special Top Mount
2 x M6 Bolt (Counter sunk)
2 x M6 Nut
2 x Body Washer
1 x M8 Bolt Short
SPECIFICATIONS
Max Battery Size (mm) L304 x W175 x H225
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 0.5 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC150, VSR200
Tray Location Engine Bay, Drivers side Front next to radiator support
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Locate the area where the tray will be fitted. Ensure it is clear ready for the tray. Note the 6mm holes in the engine bay.
3. Place and bolt the tray into the Engine Bay, using the 2 x M6 Counter sunk bolts, washer and nuts on the underside.
4. Fit the battery, J bolts and special top mount. Use the M8 bolt to secure the top mount to the radiator support and tighten nuts on the J Bolts. Note M8 captive nut already exists in radiator support.
5. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery and tray do not hit the bonnet.
