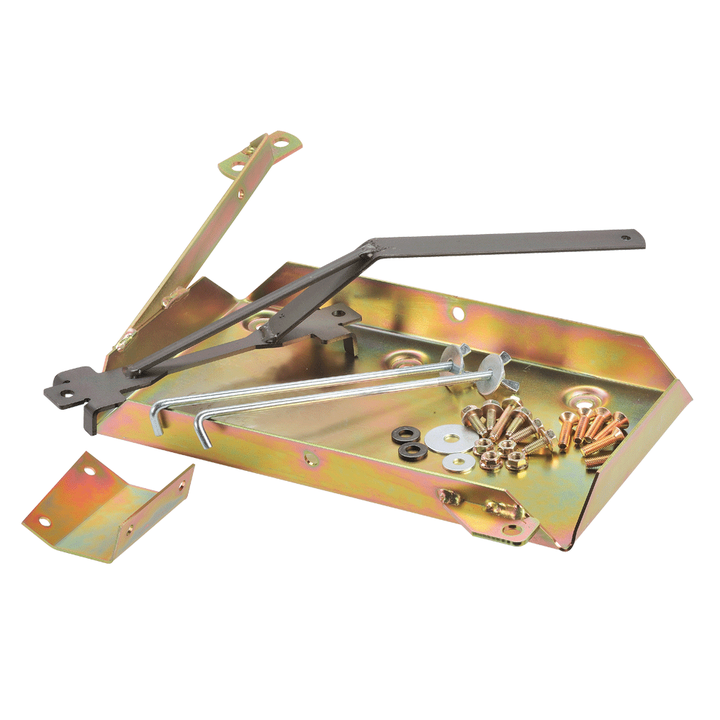

PROJECTA Battery Tray fits Nissan Patrol GU 99-14 HDBT152
PROJECTA Battery Tray fits Nissan Patrol GU 99-14 HDBT152
Regular price
$313.95 AUD
Regular price
Sale price
$313.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Auto/Manual Patrol GU TD42 4.2 Litre & 3 Litre TDI (1999-2014)
Custom-made for the Nissan Patrol GU, the HDBT152 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
Special Tray Support Bracket
J Bolts
5 x M6 Bolt
4 x M6 Nut
1 x Panel Washer
2 x Spacers
6 x M6 Bolts, Countersunk
1 x M6 Bolt, 40mm long
1 x Washer
SPECIFICATIONS
Max Battery Size (mm) L300 x W174 x H220
Max Battery Weight 23Kg
Recommended batteries Exide LCS 27-97 & Century N70TMF
Approximate fitting time 1 hour
Special tools None required
Recommended Dual Battery System P/n: IDC25, DBC100 (can use DBC150), VSR100 (can use VSR200)
Tray Location Engine Bay, Passenger Side over wheel arch
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminal from the main battery.
2. Remove radiator overflow bottle support bracket if fitted.
3. Remove bolt from bracket holding overflow bottle hose from inner guard.
4. Fit Special Tray Mounting Bracket to inner guard. Use 2 x M6 bolts in to the captive nuts on the inner guard.
5. Lay the battery tray into position lining up the holes with the Special Tray Mounting Bracket.
6. Bolt the tray into positon using the counter sunk bolts. Use the two captive nuts and one existing hole in the inner guard. Use the existing hole, bolt washer and nut provided.
7. Reattach overflow hose to bracket on tray.
8. Fit battery onto the tray. Install J bolts and lay the Special Top Mount over the battery and J bolts. The top mount will line up with one of the bolts from the side guard. Remove this bolt and tighten the bolt using the spaces provided to the Special Top Mount and the side guard. Tighten the wing nuts on J Bolts and Special Top Mount.
9. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System. Before closing the bonnet make sure the battery, tray and J bolts do not hit the bonnet.
