PROJECTA

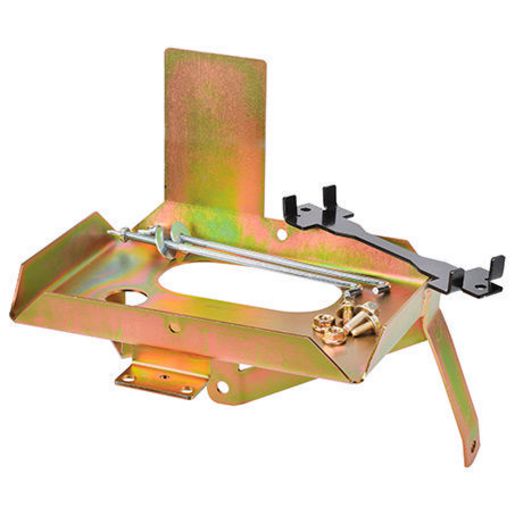

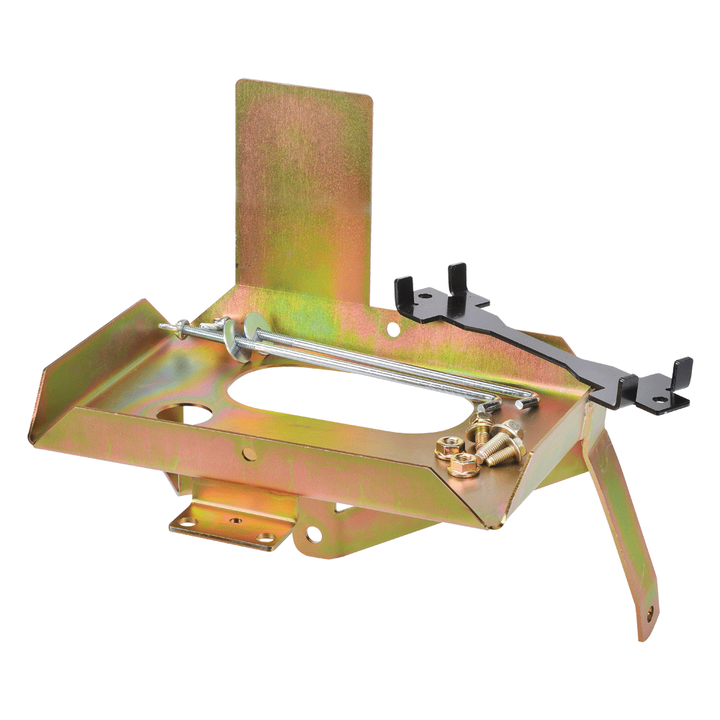

PROJECTA Battery Tray fits Mitsubishi Tritron HDBT204
PROJECTA Battery Tray fits Mitsubishi Tritron HDBT204
Regular price
$313.95 AUD
Regular price
Sale price
$313.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Pajero Sport Auto/Manual 2.4 Litre Turbo Diesel & Triton Auto/Manaul 2.4 Litre Turbo Diesel (2015>)
Custom-made for the Mitsubishi Pajero Sport & Mitsubishi Tritron, the HDBT204 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
1 x M6 Short Bolt
1 x M8 Short Bolt
1 x M8 Long Bolt
2 x M8 Nuts
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 x H220
Max Battery Weight 17Kg
Recommended Batteries Exide LCS24-86 Optima D34 Century NS70T
Approximate Fitting Time 1 hour
Recommended Dual Battery System P/No: IDC25, DBC100, DBC150, VSR100, VSR200
Tray Location Engine bay, passenger side rear
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove main battery. Remove M6 bolt holding wiring loom bracket at rear of battery and discard bracket and battery box (if supplied).
3. Remove 2 x M8 nuts from Bosch relay and remove M8 bolt on brake line bracket on the lower firewall.
4. Relocate fuel line on plastic clips on fire wall to the lower position on plastic clip.
5. Cable tie fuel line to heater hose.
6. Position Battery Tray in position.
7. Ensure tray sits on top of Bosch relay bracket.
8. Fit short M8 bolt in rear support arm of tray onto brake line bracket.
9. Fit M8 long bolt through vertical bracket with captive nut.
10. Fit 2 x M8 nuts on Bosch relay mount bracket.
11. Fit M6 bolt through hole at front of tray into captive nut.
12. Tighten all bolts and nuts and check clearance of all hoses and cabling.
13. Install battery and standard top mount. Ensure positive terminal is toward the front of the car.
14. Refit original battery and cables, refit top mount and secure.
15. Reconnect the positive terminal then the negative battery terminal to the mainstarter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet
Custom-made for the Mitsubishi Pajero Sport & Mitsubishi Tritron, the HDBT204 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
1 x M6 Short Bolt
1 x M8 Short Bolt
1 x M8 Long Bolt
2 x M8 Nuts
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 x H220
Max Battery Weight 17Kg
Recommended Batteries Exide LCS24-86 Optima D34 Century NS70T
Approximate Fitting Time 1 hour
Recommended Dual Battery System P/No: IDC25, DBC100, DBC150, VSR100, VSR200
Tray Location Engine bay, passenger side rear
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove main battery. Remove M6 bolt holding wiring loom bracket at rear of battery and discard bracket and battery box (if supplied).
3. Remove 2 x M8 nuts from Bosch relay and remove M8 bolt on brake line bracket on the lower firewall.
4. Relocate fuel line on plastic clips on fire wall to the lower position on plastic clip.
5. Cable tie fuel line to heater hose.
6. Position Battery Tray in position.
7. Ensure tray sits on top of Bosch relay bracket.
8. Fit short M8 bolt in rear support arm of tray onto brake line bracket.
9. Fit M8 long bolt through vertical bracket with captive nut.
10. Fit 2 x M8 nuts on Bosch relay mount bracket.
11. Fit M6 bolt through hole at front of tray into captive nut.
12. Tighten all bolts and nuts and check clearance of all hoses and cabling.
13. Install battery and standard top mount. Ensure positive terminal is toward the front of the car.
14. Refit original battery and cables, refit top mount and secure.
15. Reconnect the positive terminal then the negative battery terminal to the mainstarter battery. Before closing the bonnet make sure the battery and tray do not hit the bonnet
