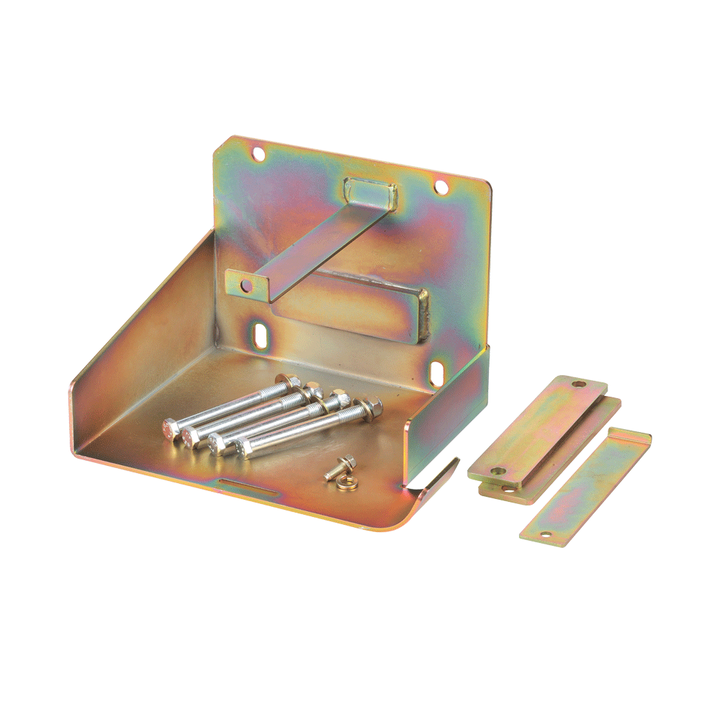

PROJECTA Battery Tray fits Mazda BT-50/Ford Ranger HDBT254
PROJECTA Battery Tray fits Mazda BT-50/Ford Ranger HDBT254
Regular price
$413.95 AUD
Regular price
Sale price
$413.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Auto/Manual Ford PX Ranger and Auto/Manual Mazda BT-50 (2011>)
Custom-made for the Mazda BT-50 and Ford Ranger, the HDBT254 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
2 x Chassis Plates
Hold Down Top Mount
1 x M8 Bolt
1 x M8 Spring Washer
4 x M12 Bolts (Chassis Bolts)
4 x M12 Nylock Nuts
4 x M12 Washers
SPECIFICATIONS
Max Battery Size (mm) L326 x W165x H242
Max Battery Weight 27.2Kg
Recommended batteries Optima D31A
Approximate fitting time 2 hours
Special tools None required
Recommended Dual Battery System DBC150, VSR200 or IDC25
Tray Location Under the body, passengers side of chassis rail
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminals from the main battery.
2. Remove the 4 bolts holding the transfer box guard and remove the guard, replace after installing battery tray and battery.
3. Position tray as close as possible to fuel tank guard and using M12 bolts, nylock nuts and washer secure tray to chassis rail. Using 2 X chassis plates supplied. No holes are required as the bolts are over and under the Chassis rail.
4. Check clearance of fuel lines and brake lines. Shroud fuel and brake lines with split tubing where they pass over the top bracket.
5. Install battery and ensure clearance to fuel tank and secure battery. Using M8 bolt and spring washer fit the hold down top mount.
6. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System.
Custom-made for the Mazda BT-50 and Ford Ranger, the HDBT254 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
2 x Chassis Plates
Hold Down Top Mount
1 x M8 Bolt
1 x M8 Spring Washer
4 x M12 Bolts (Chassis Bolts)
4 x M12 Nylock Nuts
4 x M12 Washers
SPECIFICATIONS
Max Battery Size (mm) L326 x W165x H242
Max Battery Weight 27.2Kg
Recommended batteries Optima D31A
Approximate fitting time 2 hours
Special tools None required
Recommended Dual Battery System DBC150, VSR200 or IDC25
Tray Location Under the body, passengers side of chassis rail
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative battery terminals from the main battery.
2. Remove the 4 bolts holding the transfer box guard and remove the guard, replace after installing battery tray and battery.
3. Position tray as close as possible to fuel tank guard and using M12 bolts, nylock nuts and washer secure tray to chassis rail. Using 2 X chassis plates supplied. No holes are required as the bolts are over and under the Chassis rail.
4. Check clearance of fuel lines and brake lines. Shroud fuel and brake lines with split tubing where they pass over the top bracket.
5. Install battery and ensure clearance to fuel tank and secure battery. Using M8 bolt and spring washer fit the hold down top mount.
6. Reconnect the negative battery terminal to the main starter battery or install the desired Dual Battery System.
