PROJECTA Battery Tray fits Holden Colorado HDBT350
PROJECTA Battery Tray fits Holden Colorado HDBT350
Regular price
$413.95 AUD
Regular price
Sale price
$413.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Battery Tray for Colorado Auto/Manual RGD 2.8 Litre Diesel, Colorado 7 RGD 2.8 Litre Diesel (2011>)
Custom-made for the Holden Colorado, the HDBT350 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!

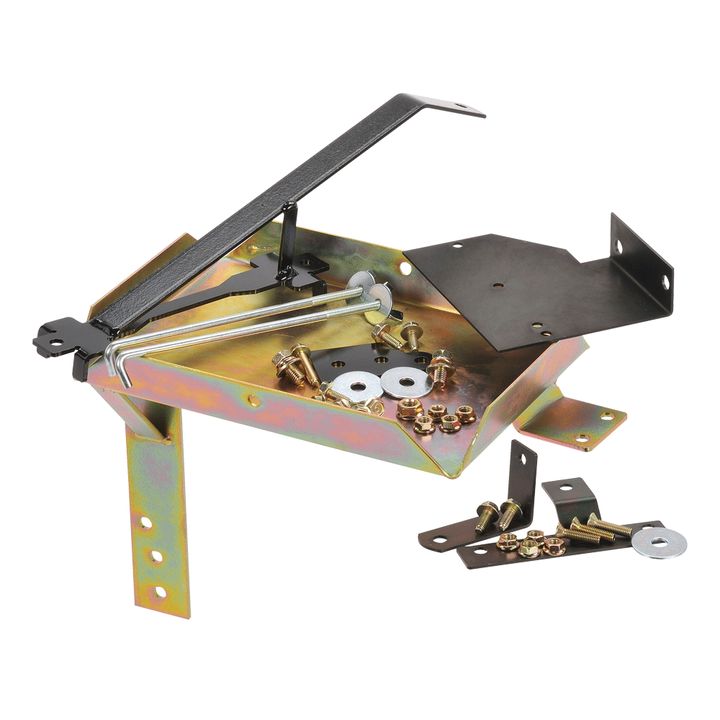

KIT INCLUDES
Tray
Special Top Mount
J Bolts
Isolator Mount
Bolt Bracket
7 x M6 Bolts
1 x M6 Bolt Long
4 x M6 Nuts
1 x M6 Washer
2 x M8 Bolts
1 x M8 Nut
1 x M8 Body Washer
*Need to supply
1 x Cushion Clamp
2 x M6 RIVNUTS are
for isolator mount
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 X H200
Max Battery Weight 19.6Kg
Recommended batteries Optima D34 & Exide Orbital
(Fully Sealed AGM type due to close proximity to wiring and computer)
Approximate fitting time 2 hours
Special tools Right Angle Drill
Recommended Dual Battery System P/n: IDC25, DBC150, VSR200
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove the original battery & battery tray and 1 bolt only from the computer mount closest to the tray.
3. Disconnect multi-pin plug behind computer and move to fit along firewall and secure (Temporarily).
4. To allow clearance of the new battery tray:
a. You may need to bend L bracket on firewall.
b. Manipulate air-con pipe.
c. Unclip the loom behind factory tray
5. Fit Tray with lower arm between brake lines and inner guard.
6. Place 3 x M6 Bolts through special bolt bracket then into the existing holes on the inner guard, now push the bolts through the lower arm of the tray and hand tighten M6 Nuts.
7. Place 2 x M6 Bolts into plate on the front of tray. Do not tighten yet. If fitting this to a July 2012 or older Colorado go to step 12. Follow these steps for August 2012 onwards.
8. Remove existing computer with plastic bracket. Discard the plastic bracket:
a. Use M6 Countersunk bolt to long side of right. angle bracket and attach to computer while face down use lower hole.
b. Using 2 x M6 bolt countersunk attach T-bracket to the computer.
9. Drill 6mm hole through guard using the right angle Computer bracket as a template.
10. Using 1 x M6 Bolt Hex head, attach the right angle bracket to the guard with body washer and M6 nut on the underside and tighten.
11. Using M6 bolt Hex head attach one end of the T bracket to the captive nut behind washer bottle spout.
12. Place 1 x M8 bolts into front corner tab and also through the computer mount (bolt computer mount only for models older than 2013) and into the existing captured nut.
13. Using an M8 drill bit, drill a hole in the inner guard through the pre-drilled hole in rear of tab of the tray.
14. Place M8 Bolt through the tab and inner guard. Place the body washer on the underside and tighten M8 Nut.
15. Tighten all other bolts and nuts.
16. Secure loom between tray and firewall with cushion clamp (P Clip).
17. Fit negative terminal and cable to the battery first, then install battery with negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSTIVE TERMINAL TO REAR.
18. Unbolt scuttle panel bolt and use 1 x M6 long bolt in the following ways:
a. Exide Orbital – Top mount sits above scuttle panel, use bolt washer.
b. Optima D34 – Top mount sits under scuttle panel.
19. Fit J bolts and tighten the wing nuts.
Custom-made for the Holden Colorado, the HDBT350 is designed and packaged for direct fitment to your vehicle, with minimal installation steps as opposed its non-vehicle-specific counterparts. To make the process even easier for you, your battery tray will come as a complete kit, with all the necessary mounting hardware (bolts, washers, additional brackets, plates, and hold-down clamps), for hassle-free, professional installation! Your new Toyota battery tray is made to last and perform, contrusted from heavy-duty 2mm dust, rust, and corrosion-resistant passivated zinc-coated steel.
Projecta are leading the industry with their superior aftermarket heavy-duty dual battery trays, which are the ultimate solution to safely, effectively, and securely mounting an auxiliary battery to a vehicle's engine bay. Engineered to fit specific vehicle types - Ford, Holden, Isuzu, Mazda, Mitsubishi, Nissan, and Toyota - the result is a battery tray that can be easily installed without having to modify the tray or part of the vehicle. However, if a tray for your specific vehicle is not available, or you're after a universal tray, Projecta have those covered, too!
KIT INCLUDES
Tray
Special Top Mount
J Bolts
Isolator Mount
Bolt Bracket
7 x M6 Bolts
1 x M6 Bolt Long
4 x M6 Nuts
1 x M6 Washer
2 x M8 Bolts
1 x M8 Nut
1 x M8 Body Washer
*Need to supply
1 x Cushion Clamp
2 x M6 RIVNUTS are
for isolator mount
SPECIFICATIONS
Max Battery Size (mm) L265 x W174 X H200
Max Battery Weight 19.6Kg
Recommended batteries Optima D34 & Exide Orbital
(Fully Sealed AGM type due to close proximity to wiring and computer)
Approximate fitting time 2 hours
Special tools Right Angle Drill
Recommended Dual Battery System P/n: IDC25, DBC150, VSR200
Tray Location Engine Bay, Passenger side near firewall
WARNINGS
Before installation, make sure that the vehicle is stationary and the wheels chocked.
Be careful when laying wires, not to cause any electrical shorts or wire breakage.
After installation ensure the bonnet can close without hitting the newly installed battery and battery tray.
FITMENT INSTRUCTIONS
1. Make sure that the vehicle is stationary, the engine is switched off and cool. Disconnect the negative and positive battery terminals from the main battery.
2. Remove the original battery & battery tray and 1 bolt only from the computer mount closest to the tray.
3. Disconnect multi-pin plug behind computer and move to fit along firewall and secure (Temporarily).
4. To allow clearance of the new battery tray:
a. You may need to bend L bracket on firewall.
b. Manipulate air-con pipe.
c. Unclip the loom behind factory tray
5. Fit Tray with lower arm between brake lines and inner guard.
6. Place 3 x M6 Bolts through special bolt bracket then into the existing holes on the inner guard, now push the bolts through the lower arm of the tray and hand tighten M6 Nuts.
7. Place 2 x M6 Bolts into plate on the front of tray. Do not tighten yet. If fitting this to a July 2012 or older Colorado go to step 12. Follow these steps for August 2012 onwards.
8. Remove existing computer with plastic bracket. Discard the plastic bracket:
a. Use M6 Countersunk bolt to long side of right. angle bracket and attach to computer while face down use lower hole.
b. Using 2 x M6 bolt countersunk attach T-bracket to the computer.
9. Drill 6mm hole through guard using the right angle Computer bracket as a template.
10. Using 1 x M6 Bolt Hex head, attach the right angle bracket to the guard with body washer and M6 nut on the underside and tighten.
11. Using M6 bolt Hex head attach one end of the T bracket to the captive nut behind washer bottle spout.
12. Place 1 x M8 bolts into front corner tab and also through the computer mount (bolt computer mount only for models older than 2013) and into the existing captured nut.
13. Using an M8 drill bit, drill a hole in the inner guard through the pre-drilled hole in rear of tab of the tray.
14. Place M8 Bolt through the tab and inner guard. Place the body washer on the underside and tighten M8 Nut.
15. Tighten all other bolts and nuts.
16. Secure loom between tray and firewall with cushion clamp (P Clip).
17. Fit negative terminal and cable to the battery first, then install battery with negative terminal to rear of tray. DO NOT INSTALL BATTERY WITH POSTIVE TERMINAL TO REAR.
18. Unbolt scuttle panel bolt and use 1 x M6 long bolt in the following ways:
a. Exide Orbital – Top mount sits above scuttle panel, use bolt washer.
b. Optima D34 – Top mount sits under scuttle panel.
19. Fit J bolts and tighten the wing nuts.
