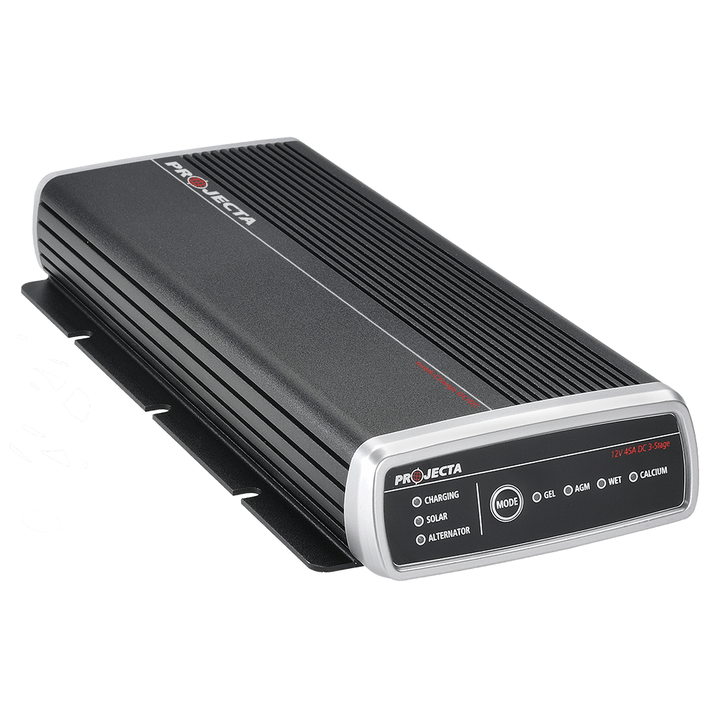

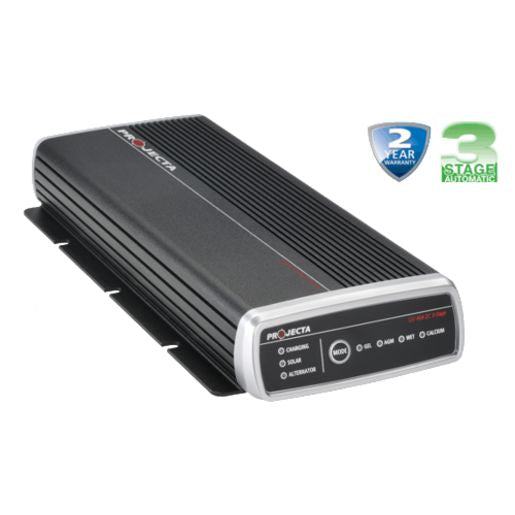

PROJECTA 45A 12V DC-DC Battery Charger IDC45

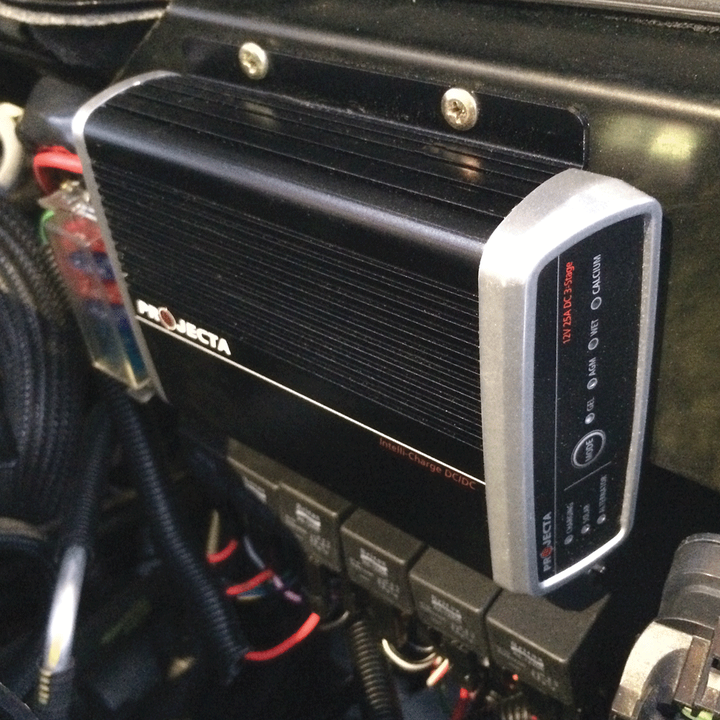

Perfect for the larger power requirements of Caravans, Motorhomes, and Trucks, the IDC45 Battery Charger is a part of Projecta's Intelli-Charge DC/Solar range, which combines solar power and power from your vehicle to execute a comprehensive multi-stage charge that guarantees optimal performance and advanced battery life. The Dual Battery Charger can be installed either in the vehcle or under the bonnet on vehicles fitted with traditional or smart alterantors. It comes IP67 dust, splash, and shock proof and can safely operate in temperatures up to 80 degrees celsius. Offering unbeatable versatility, the IDC45 has a multi-chemistry charging profiling, meaning you can set it to suit your battery type - Wet, Calcium, AGM, or Gel.

Having a dual charger that utilises both solar power and alternator inputs is a reliable, cost-effective, energy-efficient way to stay charged while you are on or off road! Projecta go one step further with their solar power, using sophisticated MPPT technology, where the IDC charger operates as an advanced solar controller. In turn, this maximises the power generated from the panels.




SPECIFICATIONS

CHARGE TYPE: 3 Stage

ALTERNATOR INPUT VOLTAGE: 9-32Vdc

MAX SOLAR INPUT: 28Vdc, 693W

OUTPUT CURRENT: Input 9-11Vdc 37A, Input 11-32Vdc 45A

BACK DRAIN ON AUX BATTERY: <5mA

CHARGER CONTROL:

Gel: 14.1V,
AGM: 14.4V
Wet: 14.7V,
Calcium: 15.4V

BATTERY CAPACITY: 150-600Ah

BATTERIES SUPPORTED: Gel, AGM, Wet & Calcium

SMART ALTERNATOR

12V: Turn On: 12.2-20V, Turn Off: <11.9V
24V: Turn On: 24.4-32V, Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V, Turn Off: <12.8V
24V: Turn On: 26.8-32V, Turn Off: <25.6V

OPERATING TEMPERATURE

-10 degrees celsiusC to +80 degrees celsiusC
