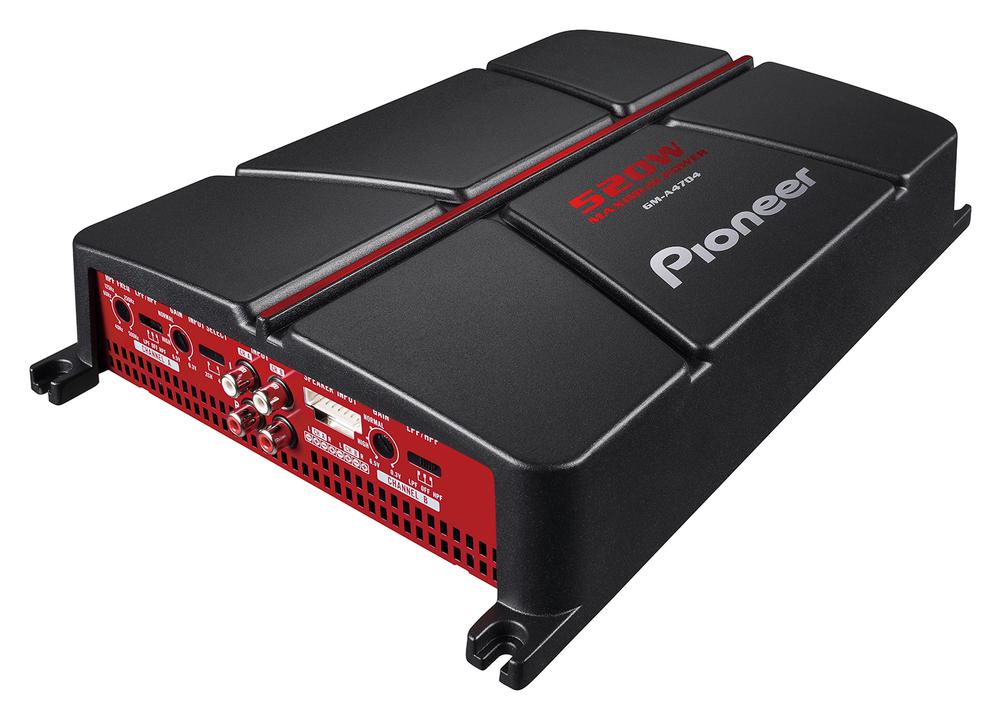

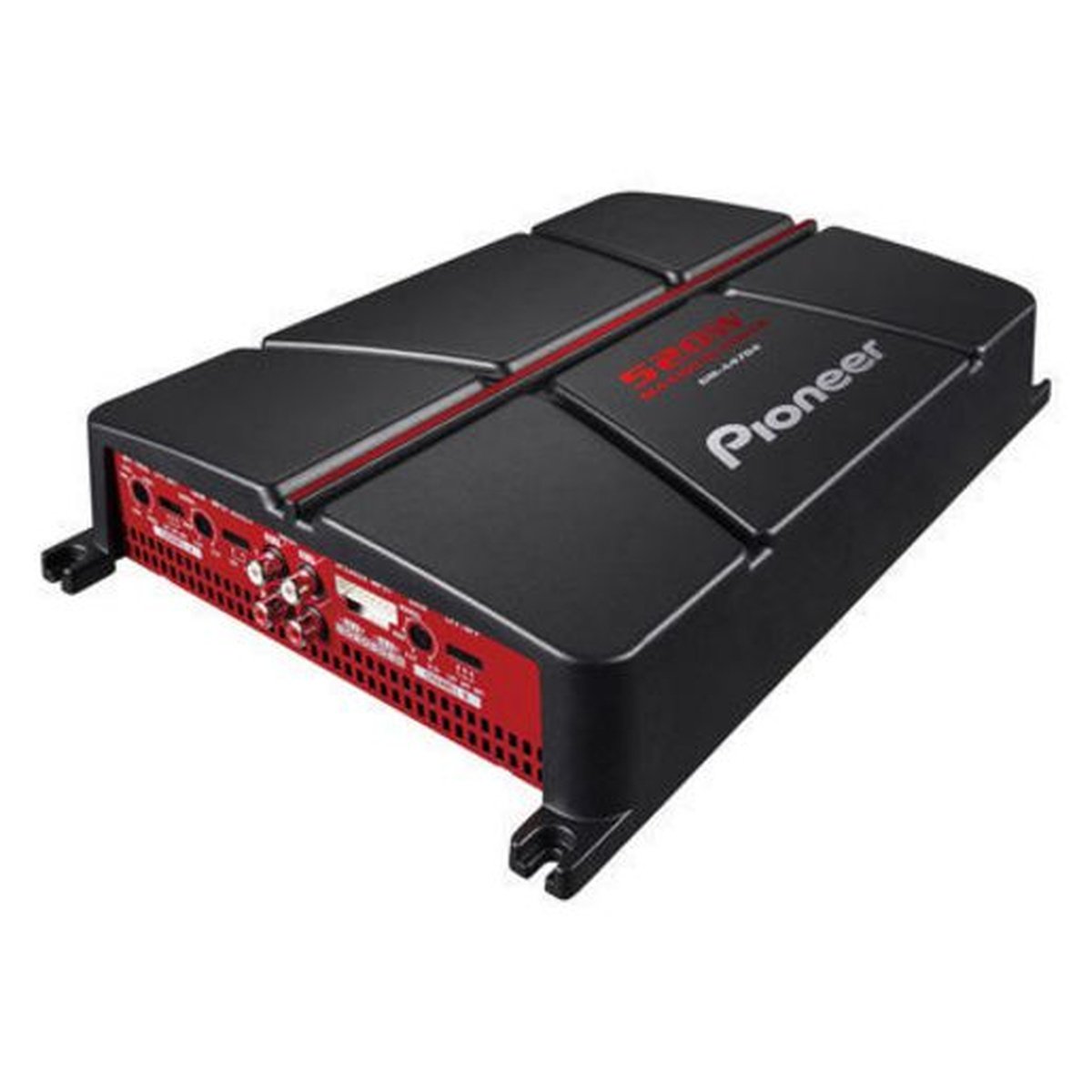

Pioneer GM-A4704 520W 4-Channel Bridgeable Amplifier

Intended to enhance your in-car audio, the GM-A4704 is a 4-channel bridgeable amplifier that automatically selects the proper input signal mode, either RCA or speaker level.

SPECIFICATIONS
GENERAL
RCA Inputs: 4-CH
Amplifier Class: Class AB
Hi-Res Certified: No
Bridgeable: Yes
Warranty: 1 Year
Speaker Level Input: Yes
Fuse Rating: 30A x 1
Bass Boost Remote: No
Automatic Signal Sensing and Turn-On: Yes
Hi-Volt Input Level Control: 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
Terminal Type: Screw
Load Impedance Allowance (Ohms): 2 to 4
Protection Control System: Yes
Dimensions: 326(W) X 60(H) X 215(D) mm
POWER
Continuous Power (RMS) Output @ 1Ω: N/A
Continuous Power (RMS) Output @ 2Ω: 65W x 4
Continuous Power (RMS) Output @ 4Ω: 40W x 4
Continuous Power (RMS) Output - Bridged @ 4Ω: 130W x 2
AUDIO ADJUSTMENTS
Low-Pass Crossover Frequency: 80 Hz
Low-Pass Slope (dB/octave): -12db/oct (A/B CH)
High-Pass Crossover Frequency: 40 Hz to 500 Hz
Bass Boost Frequency: 50Hz
Bass Boost Level: 0/6/12dB
AUDIO SPECIFICATIONS
Frequency Response: 10Hz ~ 70kHz (+0dB , -3dB)
Total Harmonic Distortion (THD): <0.05% ( 10W, 1kHz)
Signal-to-Noise (SN) Ratio: >94dB
