Narva Switch Panel 6 Way With Circuit Breaker 63194
Narva Switch Panel 6 Way With Circuit Breaker 63194
Regular price
$416.95 AUD
Regular price
Sale price
$416.95 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Narva Switch Panel 6 Way With Circuit Breaker 63194

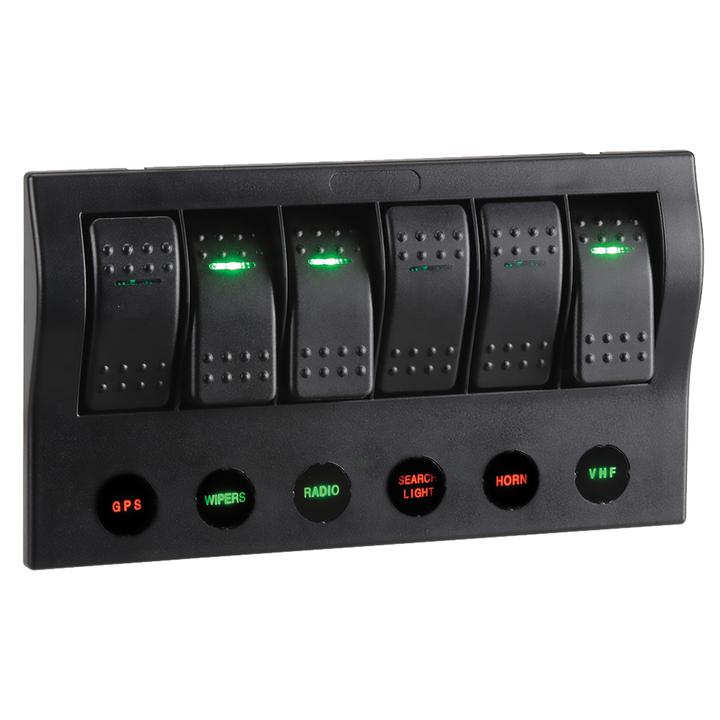

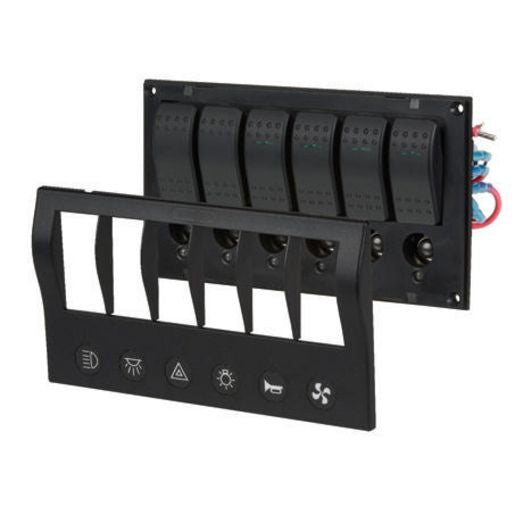

This 6-Way LED Switch Panel with Circuit Breaker protection boasts a bright, easy-to-see display, which glows red when the switch is set to off, or green when it is set to on. The panel has five off/on switches, one momentary (on) switch, and a 60-piece symbol set for use in RVs and marine applications. This switch panel is suitable for 12V or 24V systems.
Narva Circuit Breakers are designed to keep you and your electrical system safe, protecting electrical circuits from potential damage that could otherwise occur from overload events and short circuits.
SPECIFICATIONS
Amperage: 20A at 12V; 10A at 24V
Mounting opening: 160 x 83mm
Panel dimensions: 183 x 100mm
LEDs: 38
Circuit breakers: 3 x 10A (P/No. 55310); 3 x 15A (P/No. 55315)
This 6-Way LED Switch Panel with Circuit Breaker protection boasts a bright, easy-to-see display, which glows red when the switch is set to off, or green when it is set to on. The panel has five off/on switches, one momentary (on) switch, and a 60-piece symbol set for use in RVs and marine applications. This switch panel is suitable for 12V or 24V systems.
Narva Circuit Breakers are designed to keep you and your electrical system safe, protecting electrical circuits from potential damage that could otherwise occur from overload events and short circuits.
SPECIFICATIONS
Amperage: 20A at 12V; 10A at 24V
Mounting opening: 160 x 83mm
Panel dimensions: 183 x 100mm
LEDs: 38
Circuit breakers: 3 x 10A (P/No. 55310); 3 x 15A (P/No. 55315)
