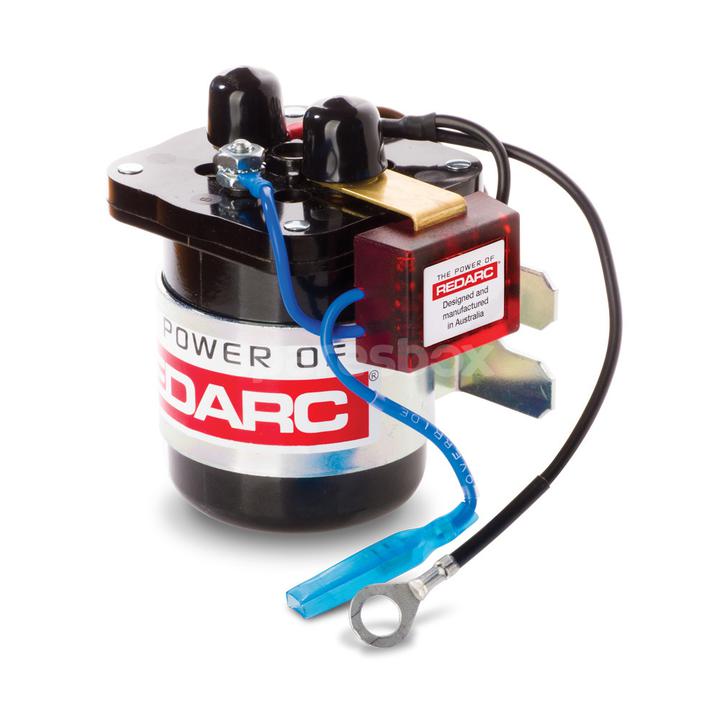

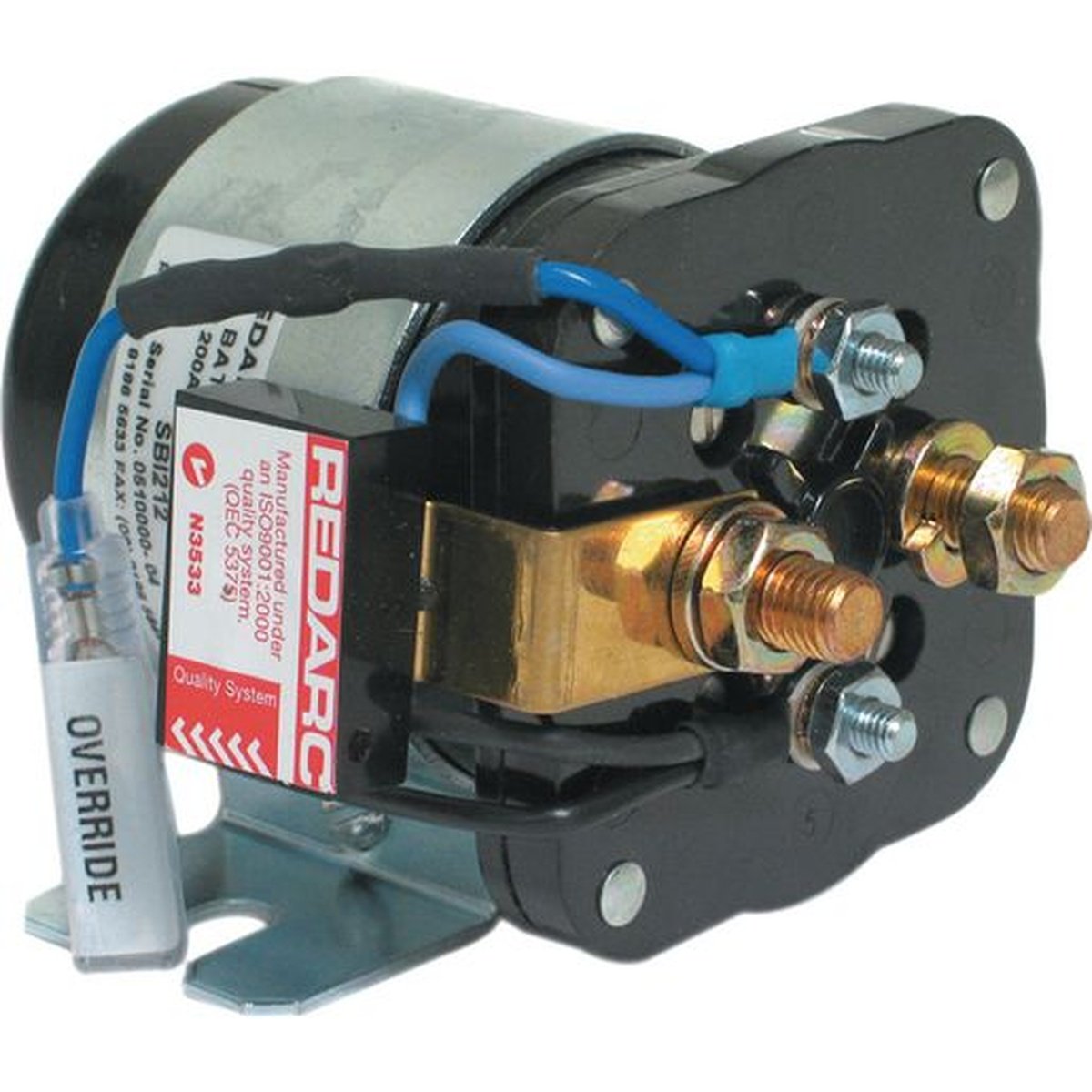

REDARC Battery Isolator 12V 200A SBI212

Safely charge your dual-battery system with the SmartStart SBI212 battery isolator, which is designed as a solenoid priority system and is smarter than a continuous-duty solenoid. Part of the REDARC Smart Start® range of microprocessor-controlled battery isolators, the SBI212 simultaneously protects the start battery from excessive discharge and lets the auxiliary battery supply charge to non-essential loads. Designed for extremely heavy-duty applications, the SBI12 is perfect for commercial, marine, and high-power modified 4WD application. REDARC know the importance of power when you're both on and off road; the REDARC Smart Start® battery isolator only draws approximately 0.15A when engaged and utilises power-saving technology.

The REDARC SmartStart® range is designed for use in 4WD and commercial vehicles and is Australia's most trusted duel battery isolator. If you want to invest in a battery isolator that is used by 4WD clubs across Australia, a REDARC SmartStart isolator is the pick for you! Featuring silver contacts for longer life, surge protection, low-standby current draw, and cooler operating temperatures, the SmartStart® isolator is built to last on the road in Australian conditions - it is even sprayed with silicon sealant so that contacts will not be exposed to moisture in tropical climates. Sophisticated fault-protection technology uses LED indication to warn the user of faults, such as over voltage, voltage drop, and excessive current-draw conditions.

If you do not need to use your Battery Isolator for heavy-duty applications, check out the 100A SmartStart® REDARC range - SBI12 (12V 100A) and SBI24 24V 100A).



REDARC Battery Isolator 12V 200A SPECS

Input (Operating) Voltage: 12VDC
Output Current Rating (Cont.): 200A
Input Fuse Rating: 200A
Output Fuse Rating: 200A
Warranty: 2 Years
Length (mm): 100
Width (mm): 95
Height (mm): 90
Weight (kg): 0.6
Type Approval: CE
