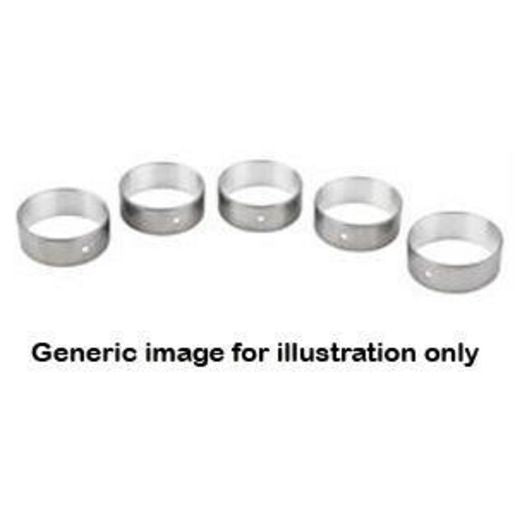

ACL Camshaft Bearing Set Fits Ford 289 302 351 Windsor 5C5616-STD

Located in Australia, ACL has been providing an extensive replacement product range to a global aftermarket for over 70 years. Their reputation for robust metallurgy, quality, precision, innovation &, of course, performance shows through their products.

SPECIFICATIONS
-High Strength Overlay Plate With Reduced Thickness for Improved Fatigue Properties
-Hardened Steel Backs on All Rod Bearings to Improve Bearing Lining & Retention
-Increased Crush for Improved Bearing Retention
-Elimination of Flash Plating on Back of Bearings & Maximise Grip Between Bearings & Housing
-Increased Eccentricity to Compensate for Bore Distortion at High RPM & Assist in Formation of Hydrodynamic Oil Films
-3/4 Grooved Main Bearings to Optimise Bearing Load Carrying Surface Area & Oil Flow to Conrod Bearings
-Tight Consistent Wall Tolerances to Help Maintain Consistent Clearances
-Enlarged ID Chamfers on Bearing Edges Where Required to Accomodate Large Fillet Radius on Performance Crankshafts
-Material: F23
-Min. Std Shaft Size: 51,702 mm / 2.0355 in
-Max Std Shaft Size: 51,727 mm / 2.0365 in
-Min. Std Tunnel Size: 54,839 mm / 2.1590 in
-Max Std Tunnel Size: 54,864 mm / 2.1600 in
-Max Wall at Crown: 1,544 mm / 0.0608 in
-Max Overall Length: 17,02 mm / 0.6701 in
