Davies, Craig Trans Cooler Hydra 30 Plate 679

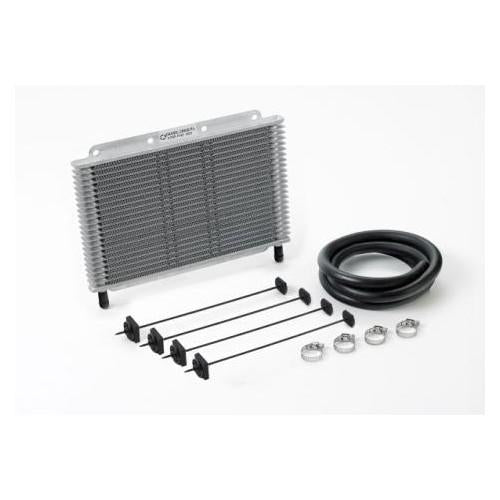

The 30-Plate heavy duty Hydra-Cool Transmission Oil Cooler with its uniquely patented dimple plate and fin design offers excellent cooling efficiency for Heavy Duty 4WD, V8 and Commercial Vehicle automatic transmissions. The patented dimple plates re-direct the oil flow, and in conjunction with the unique louvered fin design provides highly efficient cooling with low-pressure drop for both race and road applications.

Specifications:

Thickness: 19mm
Overall Length: 300mm
Overall Width: 280.5mm
Core Length: 256.2mm
Core Width: 247.6mm
Fitting Size: 3 / 8" Push On
Core Part Number: 0854

Components:

0810 Hose CLAMP X 4
210 MOUNT KIT 4 PC
0814 3/8" Hose
0971
