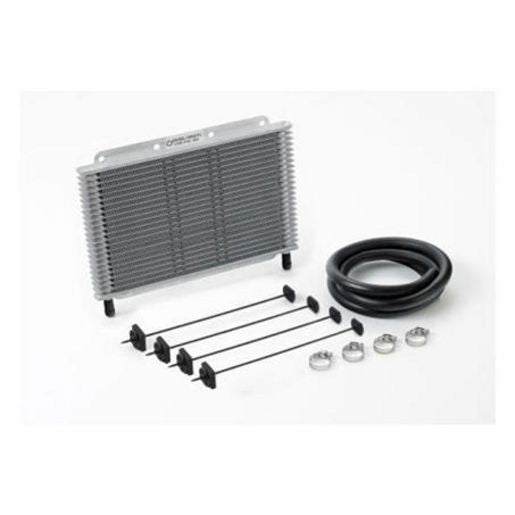

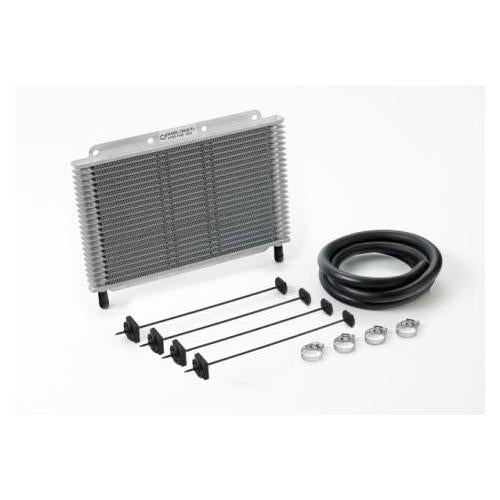

Davies, Craig Trans Cooler Hydra 21 Plate 678

The Hydra-Cool transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's compact design is perfect for applications where available mounting space is limited.

Specifications:
PLATE: 21
THICKNESS: 20mm
OVERALL LENGTH: 281mm
OVERALL WIDTH: 213mm
CORE LENGTH: 281mm
CORE WIDTH 184mm
FITTING SIZE 3 / 8" Push On
CORE P/NO. 0853

Components

Nylon Mounting Ties
3/8" Hose
Hose Clamps
Detailed Instructions
