The Hydra-Cool transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's compact design is perfect for applications where available mounting space is limited.

Specifications:

THICKNESS 20mm
OVERALL LENGTH 281mm
OVERALL WIDTH 180mm
CORE LENGTH 281mm
CORE WIDTH 152mm
FITTING SIZE 3 / 8" Push On
CORE P/NO. 0859

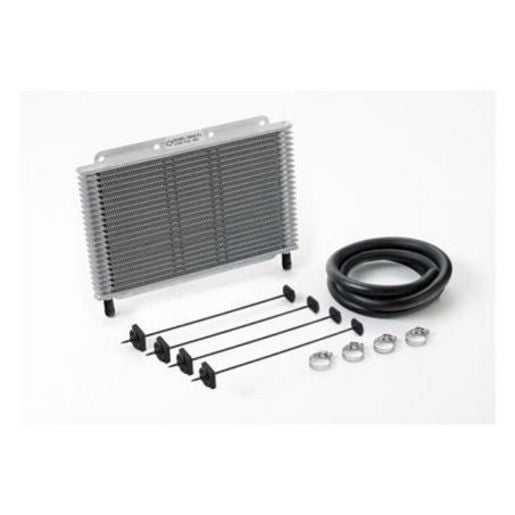

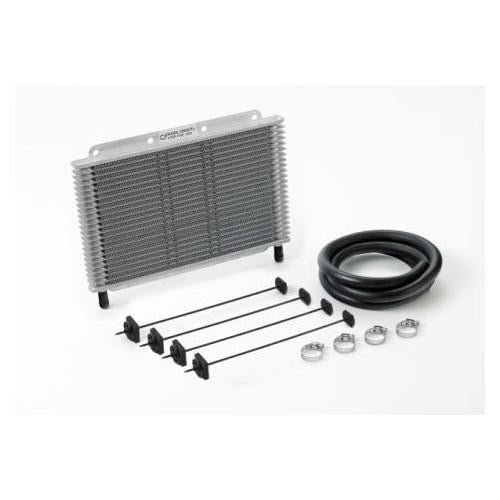

Components:

Nylon Mounting Ties
3/8" Hose
Hose Clamps
Detailed Instructions
