Davies, Craig Trans Cooler Hydra 12 Plate 676

The Hydra-Cool transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's compact design is perfect for applications where available mounting space is limited.

Specifications:
THICKNESS 20mm
OVERALL LENGTH 281mm
OVERALL WIDTH 141mm
CORE LENGTH 281mm
CORE WIDTH 112mm
FITTING SIZE 3 / 8" Push On
CORE P/NO. 0856

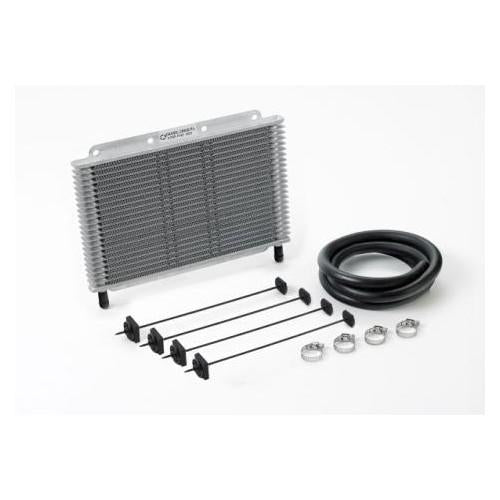

Components

Nylon Mounting Ties
3/8" Hose
Hose Clamps
Detailed Instructions
