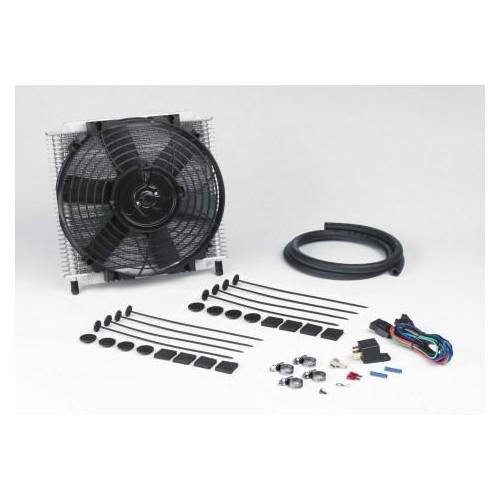

Davies, Craig Trans Cooler 30 Plate & 10"" Fan 691

The 30-Plate heavy duty Hydra-Cool Transmission Oil Cooler with its uniquely patented dimple plate and fin design offers excellent cooling efficiency for Heavy Duty 4WD, V8 and Commercial Vehicle automatic transmissions. Coupled with our 10 inch Thermatic Fan it provides everything you will need to fit your oil cooler.

Specifications:

Thickness Cooler Only
19mm

THICKNESS WITH FAN: 69mm
Overall Length: 300mm
Overall Width: 280.5mm
Core Length: 256.2mm
Core Width: 247.6mm
Fitting Size: 3 / 8" Push On

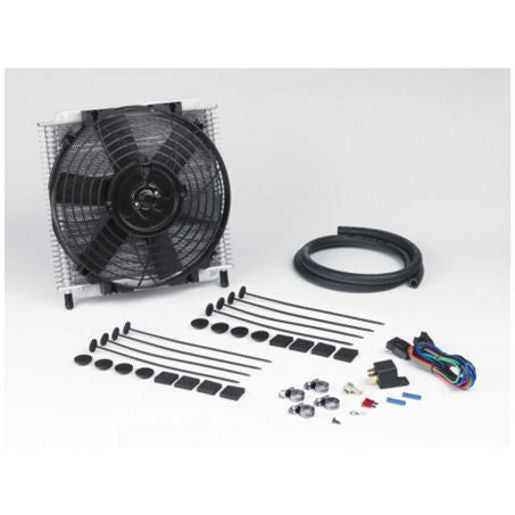

Components

0854 COOLER CORE
10" THERMATIC FAN
0570 HARDWARE BAG
0810 Hose CLAMP X 4
210 MOUNT KIT 4 PC X 2
0814 3/8" Hose
0971 Detailed Instructions
