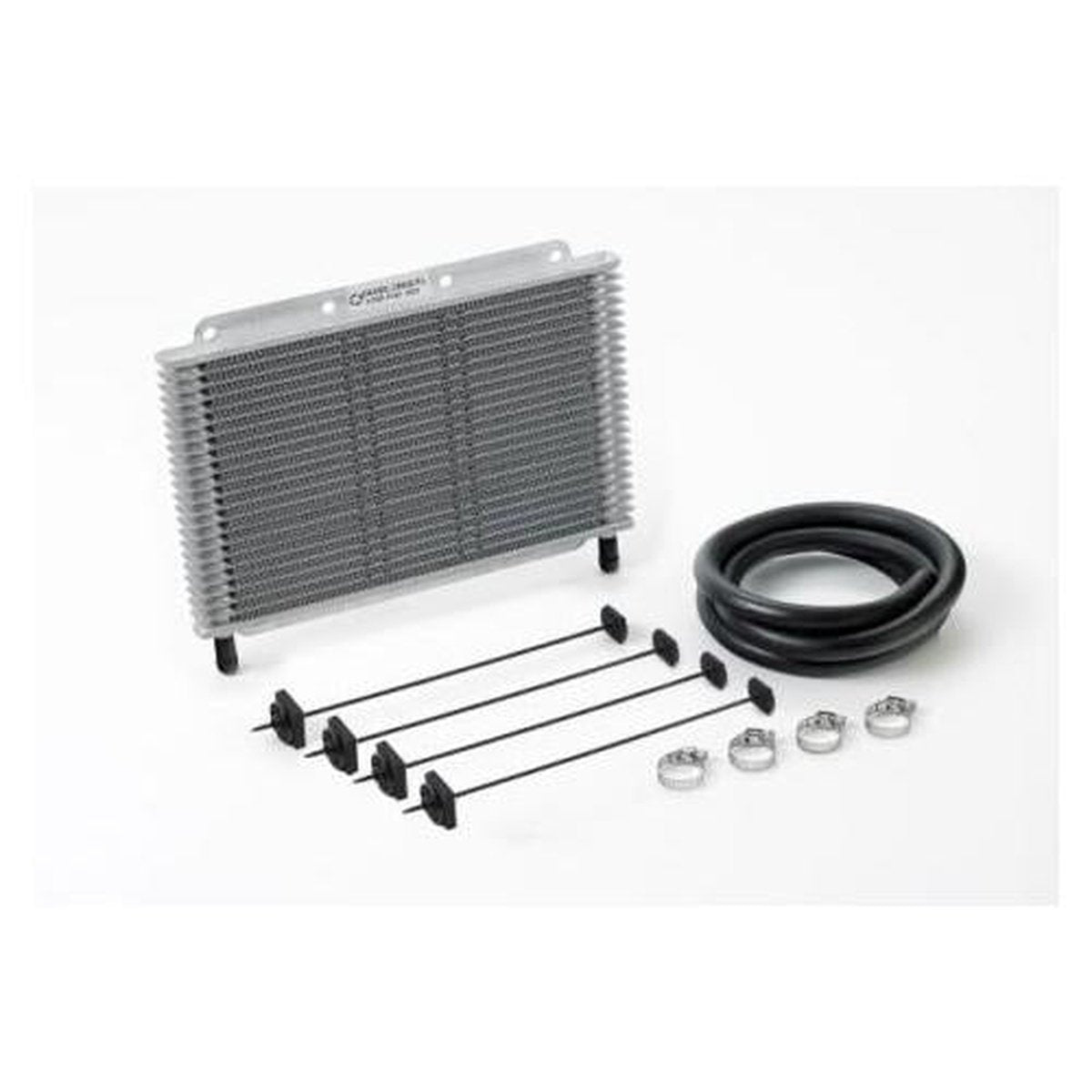

Davies, Craig Trans Cooler 17 Plate 5/16 686

The Hydra-Cool transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's compact design is perfect for applications where available mounting space is limited.

Specifications:

Thickness: 20mm
Overall Length: 281mm
Overall Width: 180mm
Core Length: 281mm
Core Width: 152mm
Fitting Size: Universal 5/16"
Core Part Number: 0851

Components:

Nylon Mounting Ties
5/16" Hose
Hose Clamps
Detailed Instructions
